When a patient enters the emergency department presenting with the symptoms of a myocardial infarction (MI), every moment is critical. Achieving favorable clinical and operational outcomes requires fast and accurate chest pain assessment at the point of care, as well as coordination with the laboratory for quality assurance. Having high-sensitivity troponin testing at the point of care—producing accurate results in just 8 minutes—could transform care delivery for millions of people each year, improving ED throughput, reducing stress and strain on acute care clinicians, and aiding in optimising the use of time and resources of busy laboratories.
|
Parameter
|
Unit of Measure
|
Measurement Range
|
|
High-Sensitivity Cardiac Troponin I (hs-cTnI)
|
ng/L*
|
LoD – 1,250
LoD plasma 1.2 LoD Whole blood 1.6 |
|
BNP†
|
* for hs-cTnI
† The products/features mentioned here are not commercially available in all countries. Their future availability cannot be guaranteed.

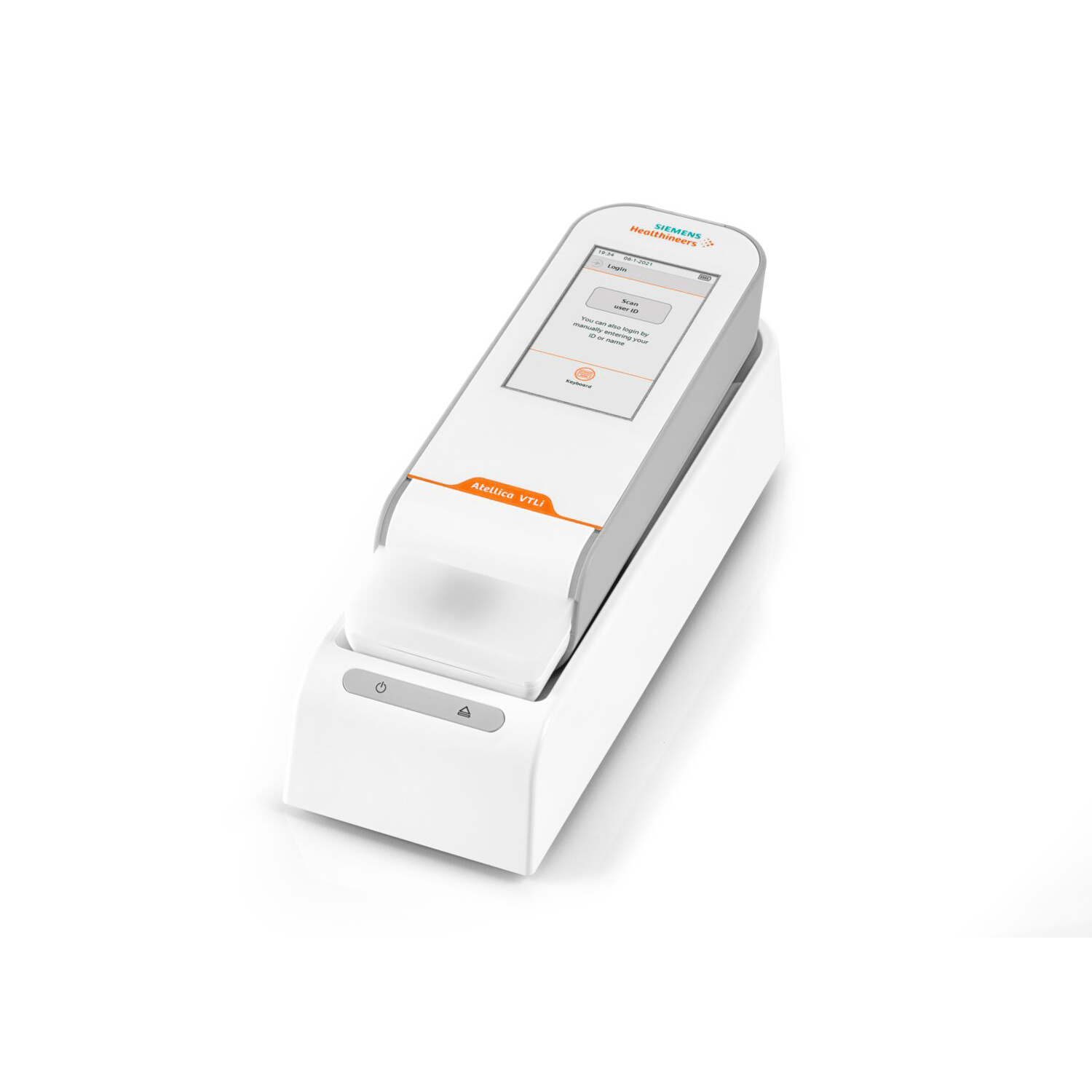

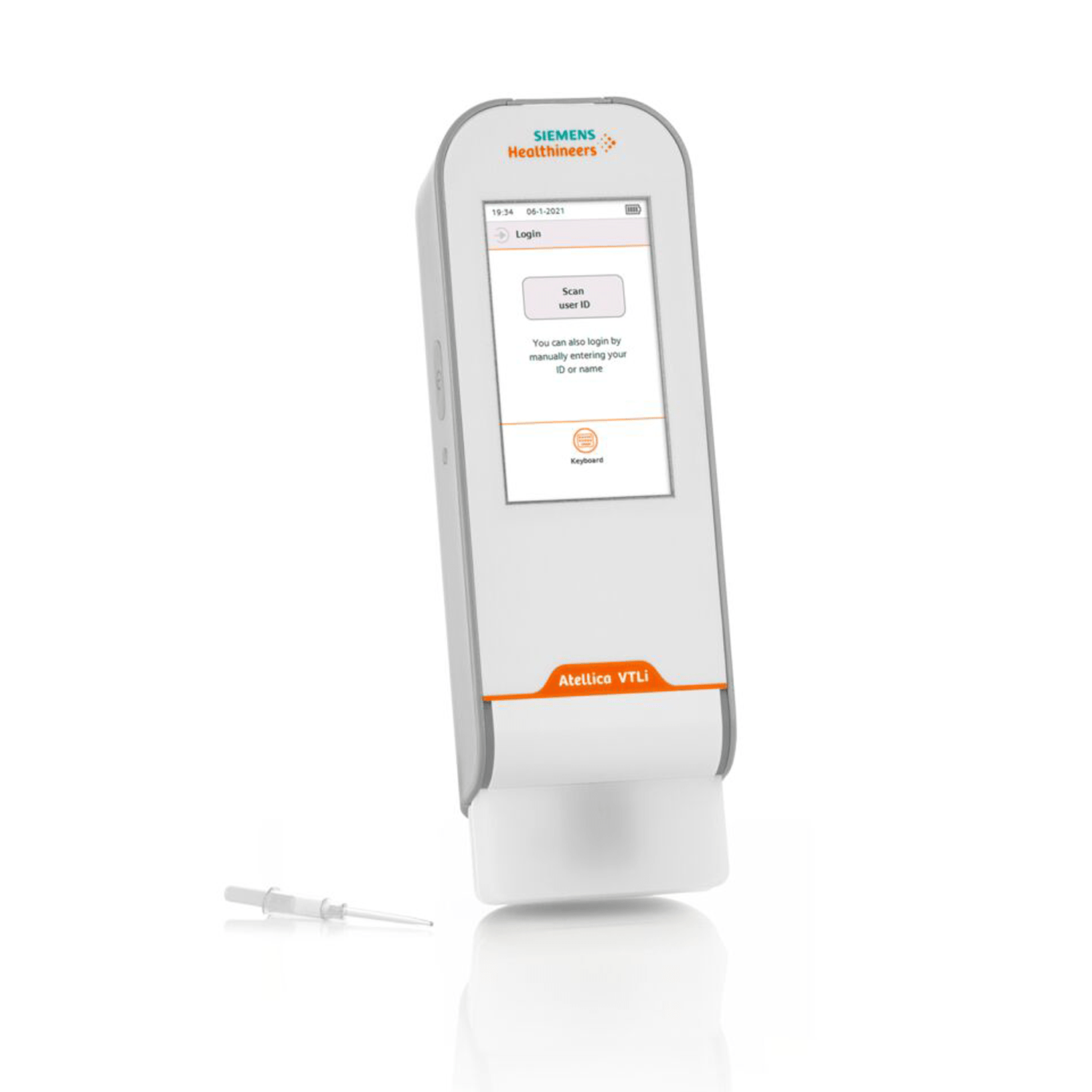

Simple to use and easily integrated into existing systems, the Atellica® VTLi Patient-side Immunoassay Analyzer, powered by Magnotech® Technology, delivers accurate, clinically actionable high-sensitivity troponin I results directly in the hands of those who need it most.

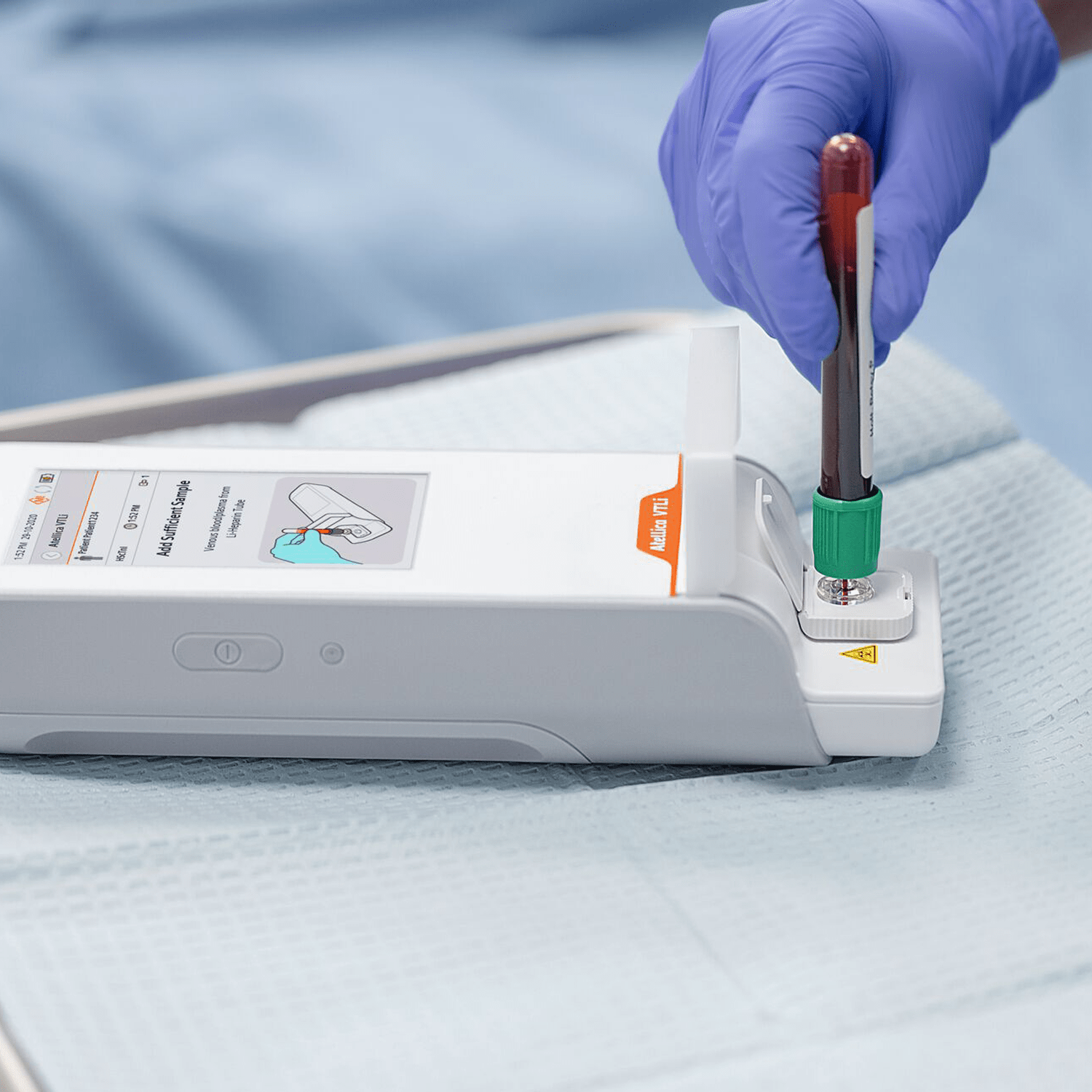

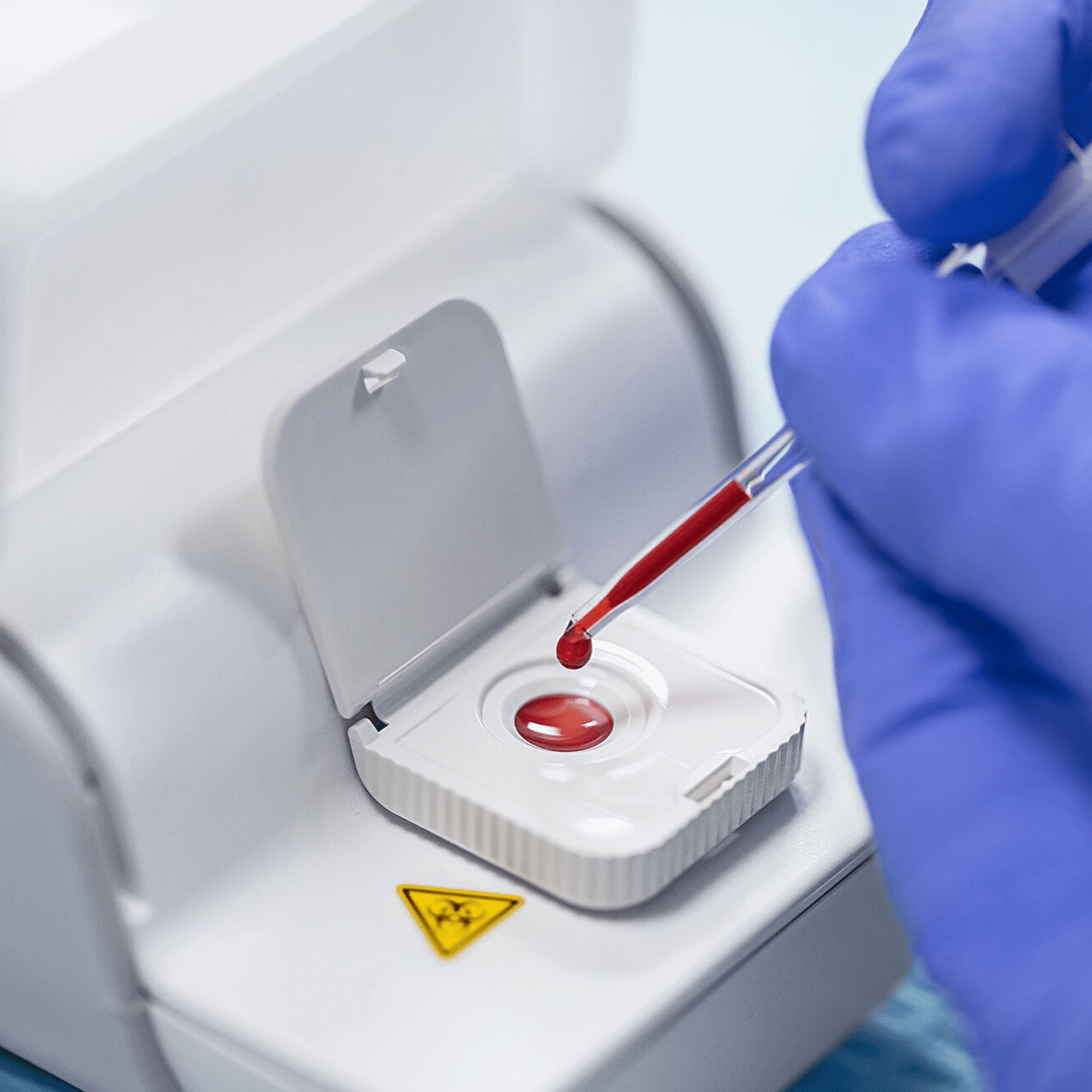

Sample Types:
|
Sample Size
|
30–100 μL
|
|
Analysis
|
Time to Results~8 minutes
|
|
Quality Control
|
Sero PATHONORM Cardiac Acute Liq
|
|

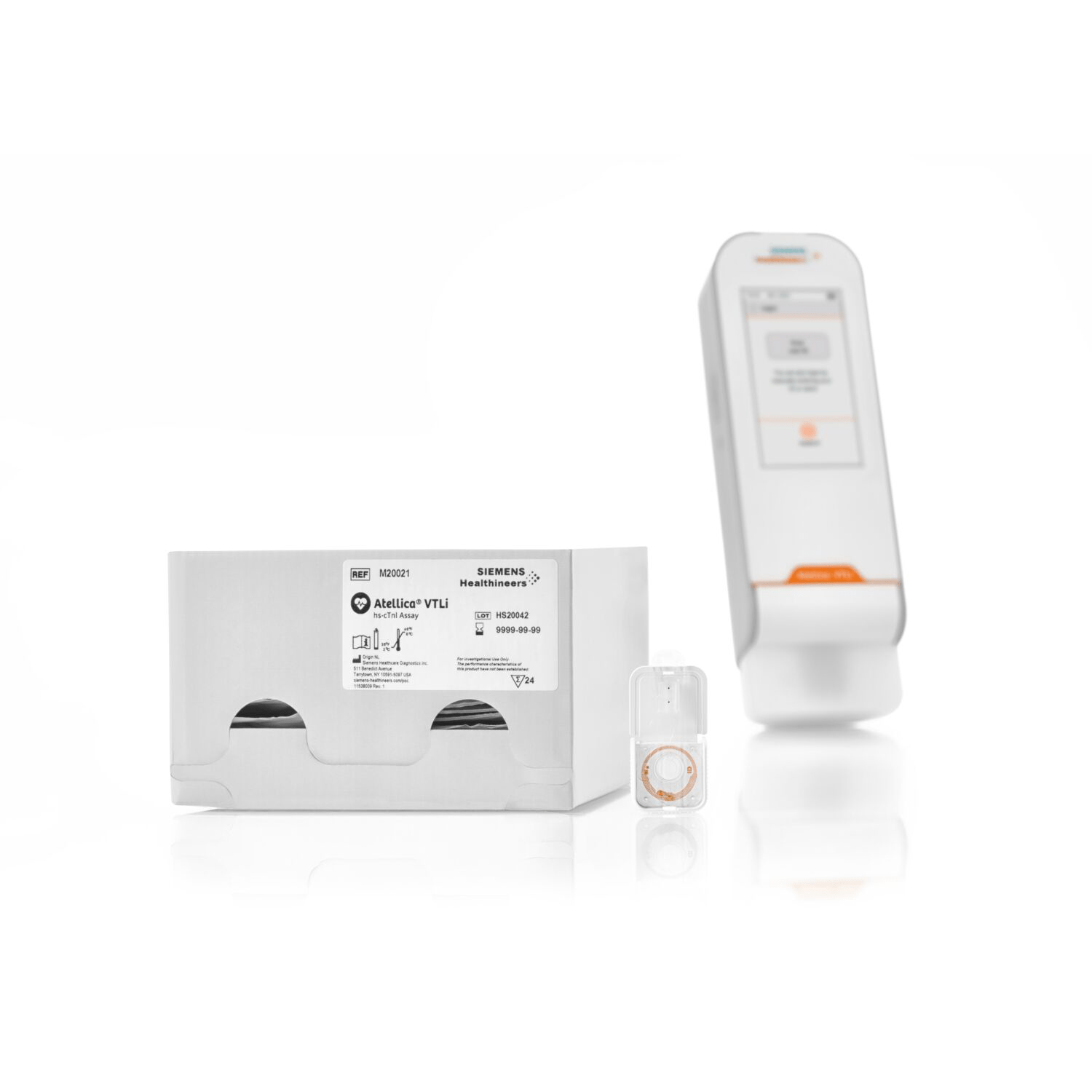

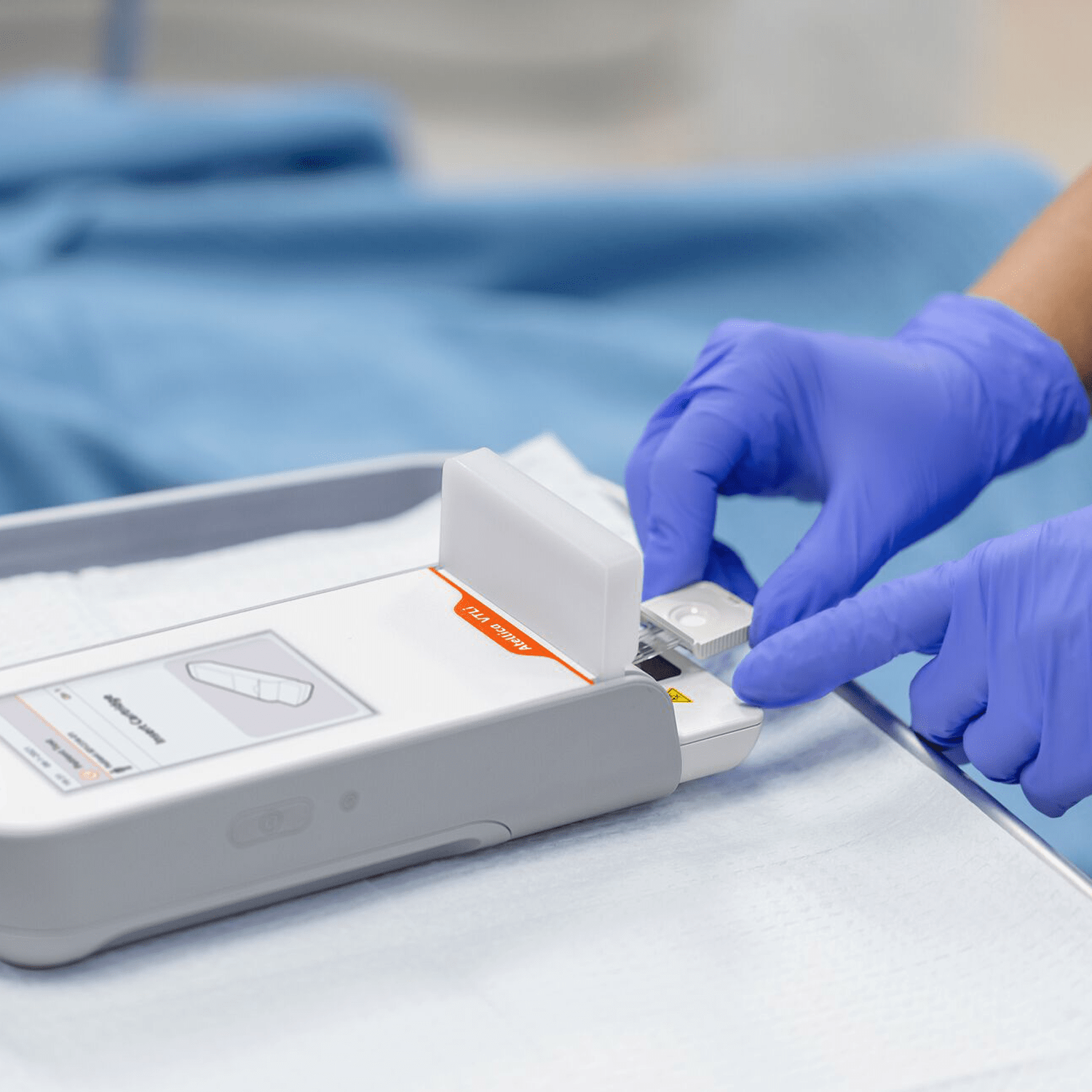

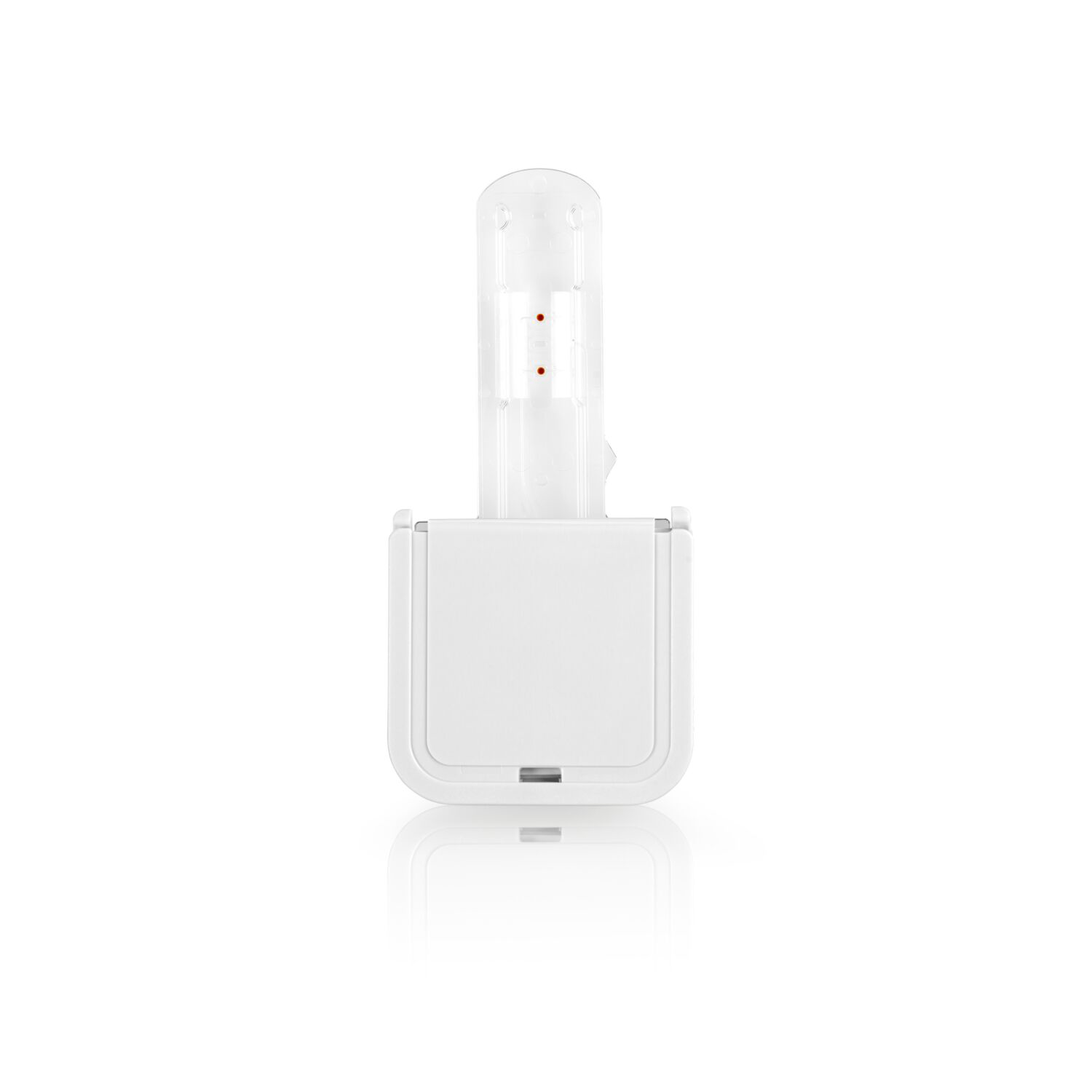

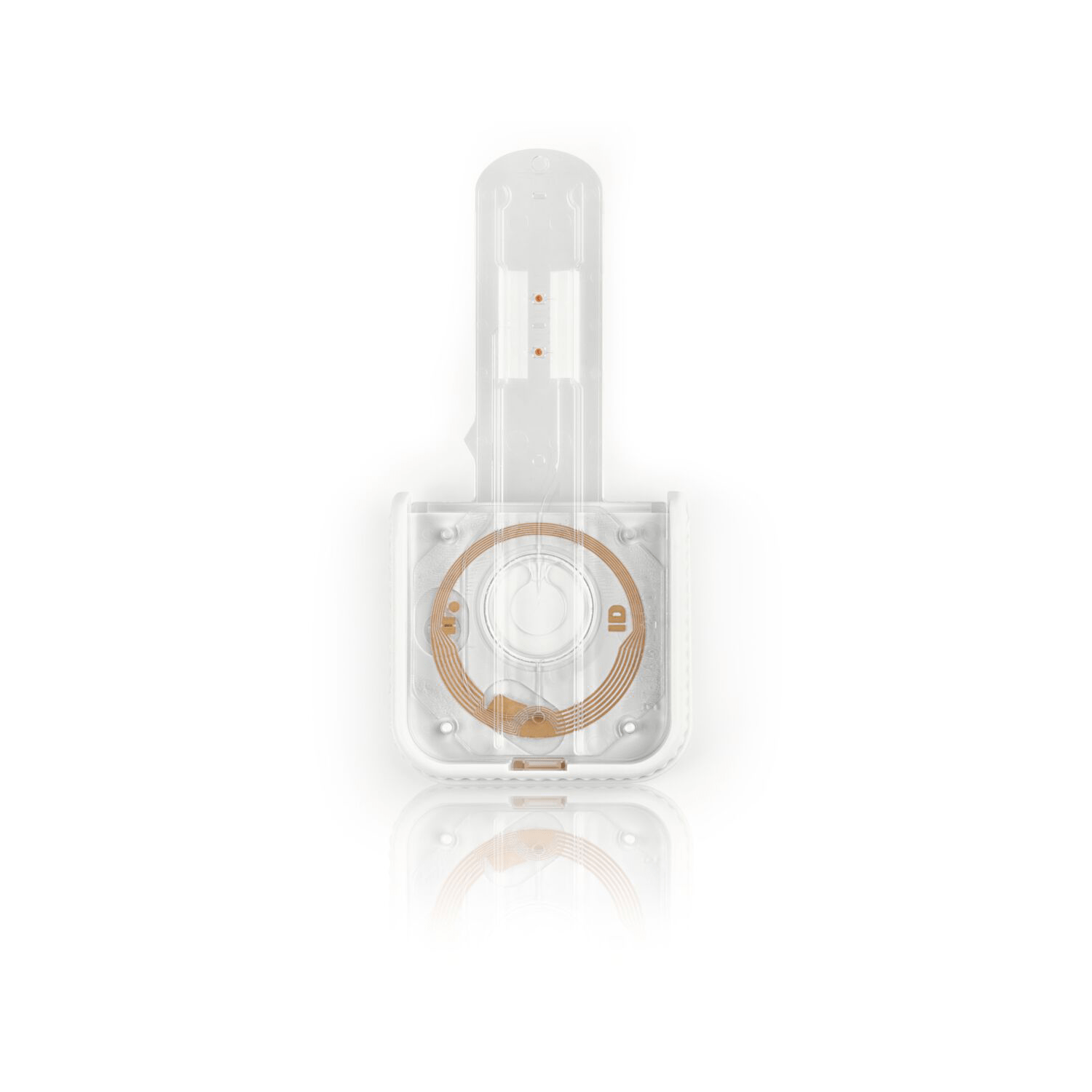

Reagent Cartridge
|
|
|
Storage
|
2–8°C
|
|
Size of box (W x D x H)
|
152 x 95 x 167 mm
|
|
Cartridges per box
|
24
|
|
System Dimensions
|
|
|
Length
|
25 cm
|
|
Height
|
5.2 cm
|
|
Width
|
8.5 cm
|
|
Weight
|
780 g
|
|

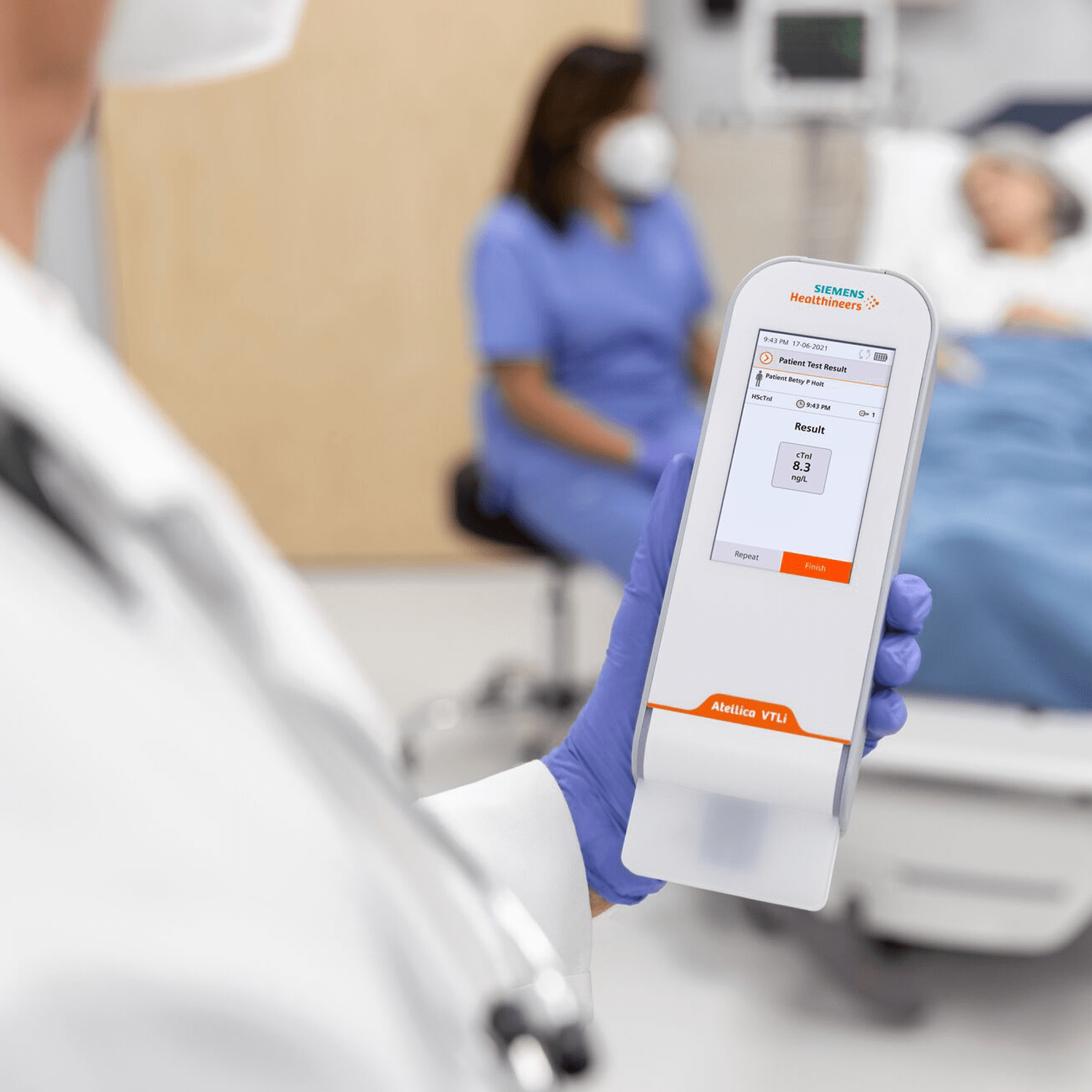

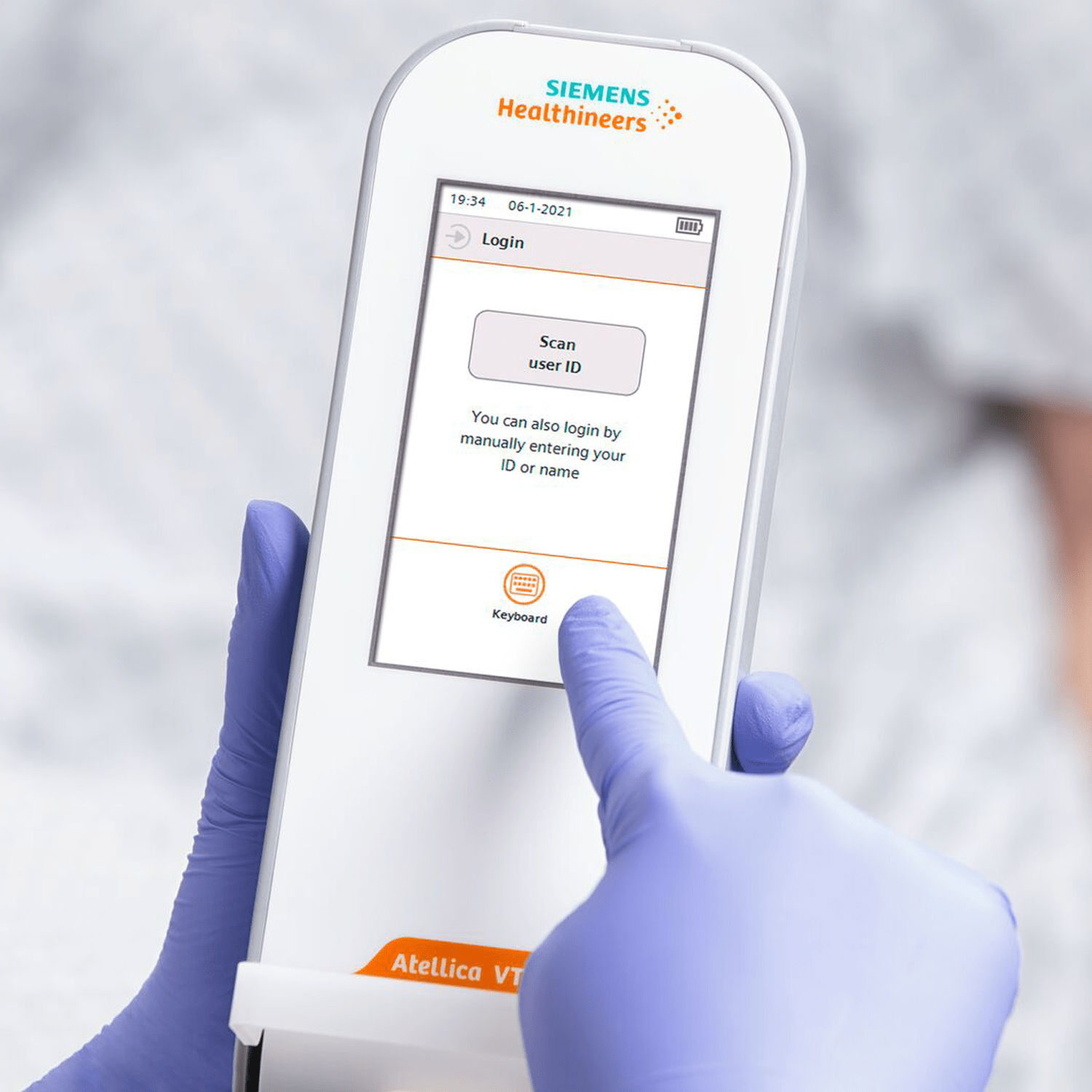

Color LCD display
|
7.3 inches
|
|

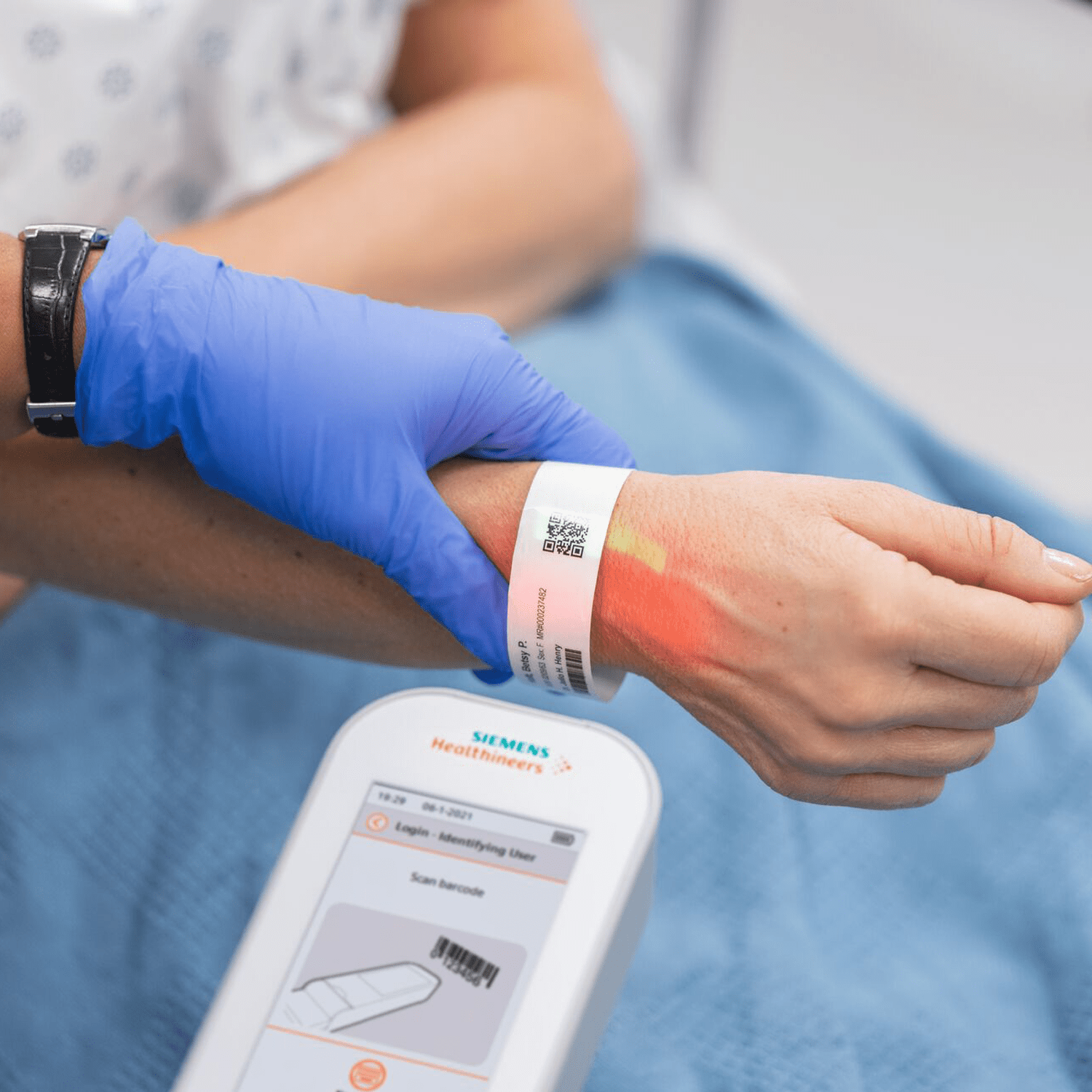

Integrated Barcode Scanner
|
Patient ID, Operator ID, and bottled QC; 1D (linear) and 2D barcode symbologies
|
|
Operating System
|
Microsoft WEC2013
|
|
Data Security
|
Patient data anonymization
TLS 1.2 encrypted end-to-end communication, using client and server certificates Configurable level of user authentication No storage of passwords, no hard-coded passwords No user access to operating system |
