CLINITEK Status® Connect System

CLINITEK Status^®Connect System simplifies wireless or wired connectivity and testing oversight in point-of care urinalysis for improved risk management.

Offers flexible connectivity solutions by integrating data directly to the LIS, EMR or via point-of-care data management software solutions
Provides improved POC testing workflow efficiencies when interfaced to leading data management solutions
Improved barcode response time allows quick entry of lot and expiration data with a single scan.
Improves risk management through advanced operator control functions, prevents unauthorized use
Drives compliance across testing sites with programmable QC protocols and QC lockout
Auto-Checks* help to ensure the quality and accuracy of data while facilitating an enhanced interpretation of results.

Specifications

Semi-quantitative Tests Measured
Routine urine tests	albumin, bilirubin, creatinine, glucose, ketone, leukocytes, nitrite, pH, protein, specific gravity and urobilinogen
Kidney disease test	albumin-to-creatinine ratio
Pregnancy test	Human Chorionic Gonadotropin (hCG)
General Specifications
Depth	27.2 cm
Width	17.1 cm
Height	18.5 cm
Weight	2.3 kg
Electrical rating	100V – 240V AC, 50-60 Hz (with in-line lead)
Battery operation	Not available
Ambient temperature range	18 to 30ºC
Humidity range	18-80% relative humidity, non-condensing
Compliance	UL, CE, EMC
Calibration	automatic, self-calibrating
Communication Capabilities
Communication protocol	HL7, POCT1-A2
Data transmission options	wireless, Ethernet or serial connection
Interfaces with leading point-of-care data management solutions*	Siemens’ RAPIDComm^® Data Management and Connectivity Solution MAS RALS^®-Plus Telcor Quick-Linc^® POCcelerator™
Memory
Patient test results	700
QC test results	200
Operator IDs	700
Quality Control Management Features
QC testing and reporting
QC reminders or mandatory prompt
QC lockout
Barcode Data Entry
Patient ID, operator ID and name, QC control type, lot number, and expiration date
Barcode Symbology Supported
Code 93, Code 39 (with and without check digit), Code 128, Coda Bar, Interleaved 2 of 5 (with and without check digit)
Operator Security Features
Define up to 700 operators
Operator lock-out to prevent unauthorized use
Customize access level for each operator for the following functions: Performing patient tests Performing QC tests Recalling results Modifying system settings

[product_links show3=" true"]

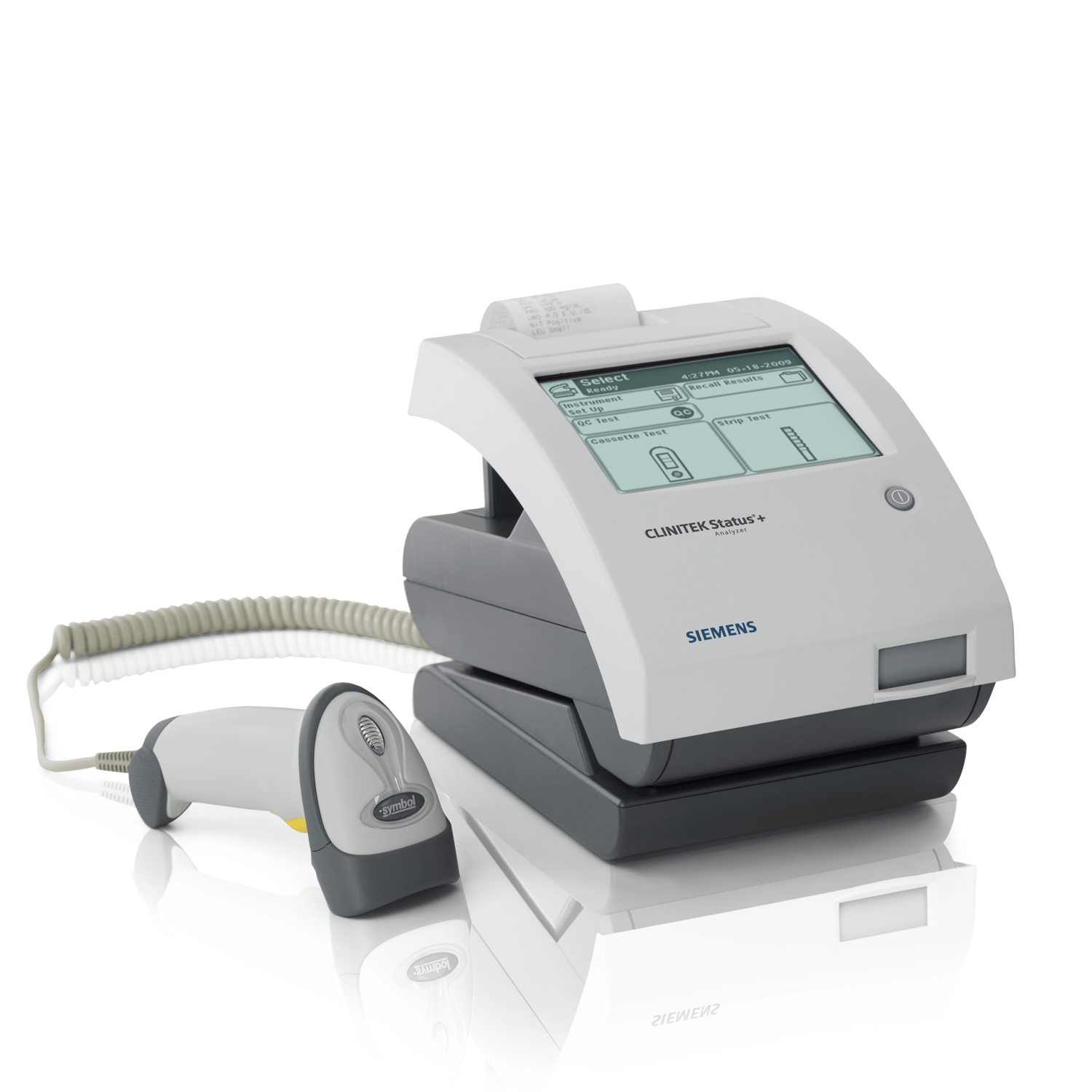

1500x1500_CLINITEKStratusConnect_Hero-min

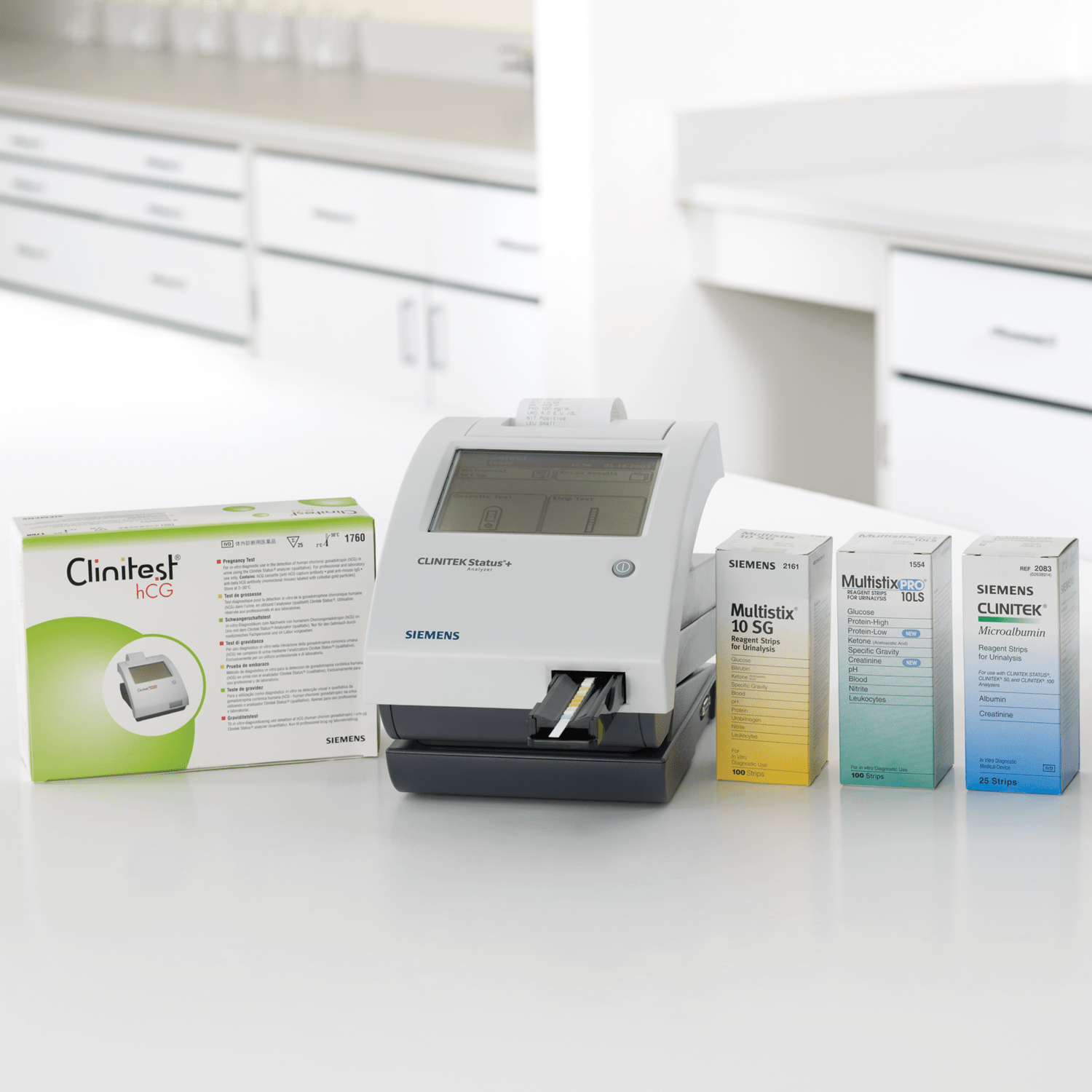

1500x1500_CLINITEKStratusConnect_Reagents-min

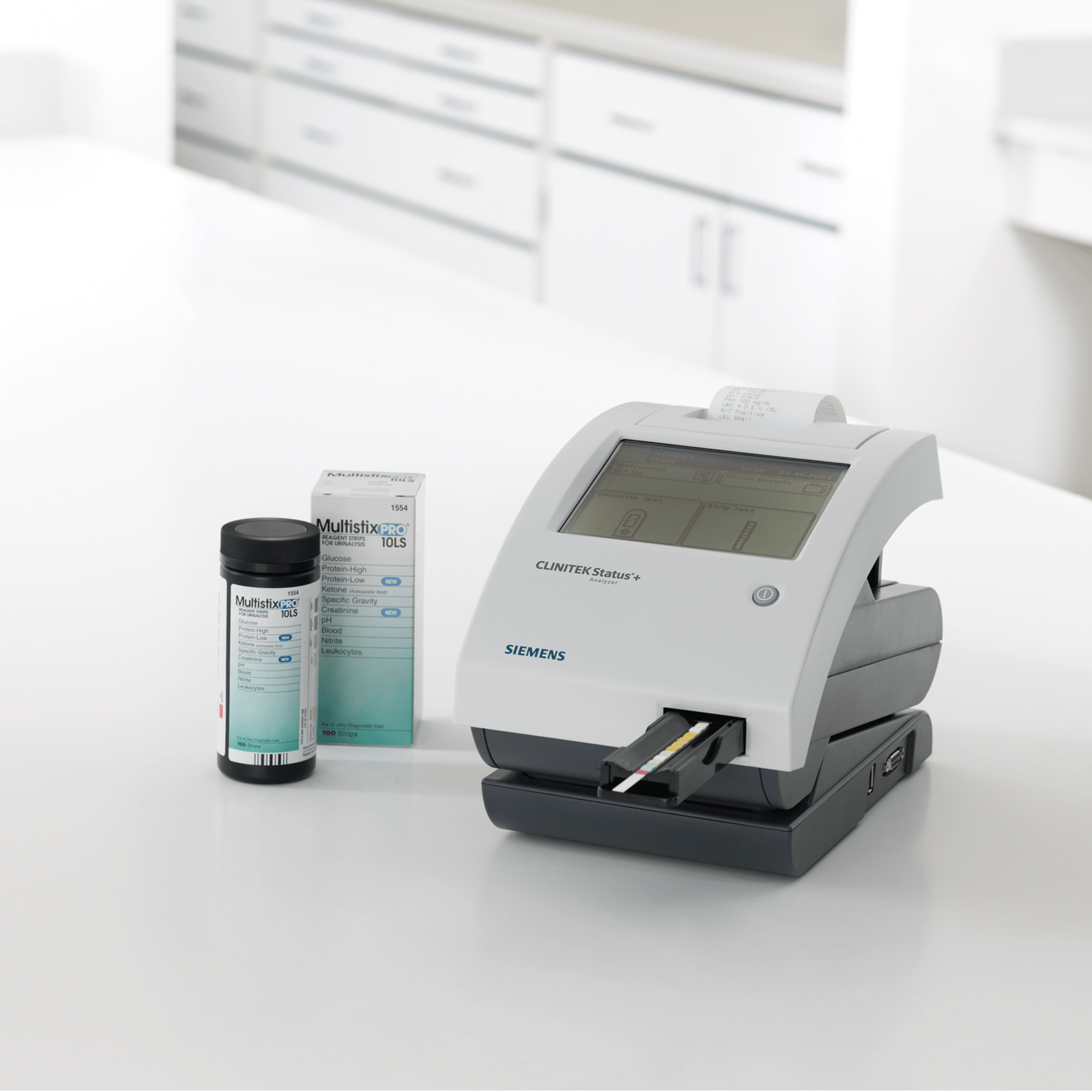

1500x1500_CLINITEKStratusConnect_MS10Pro-min

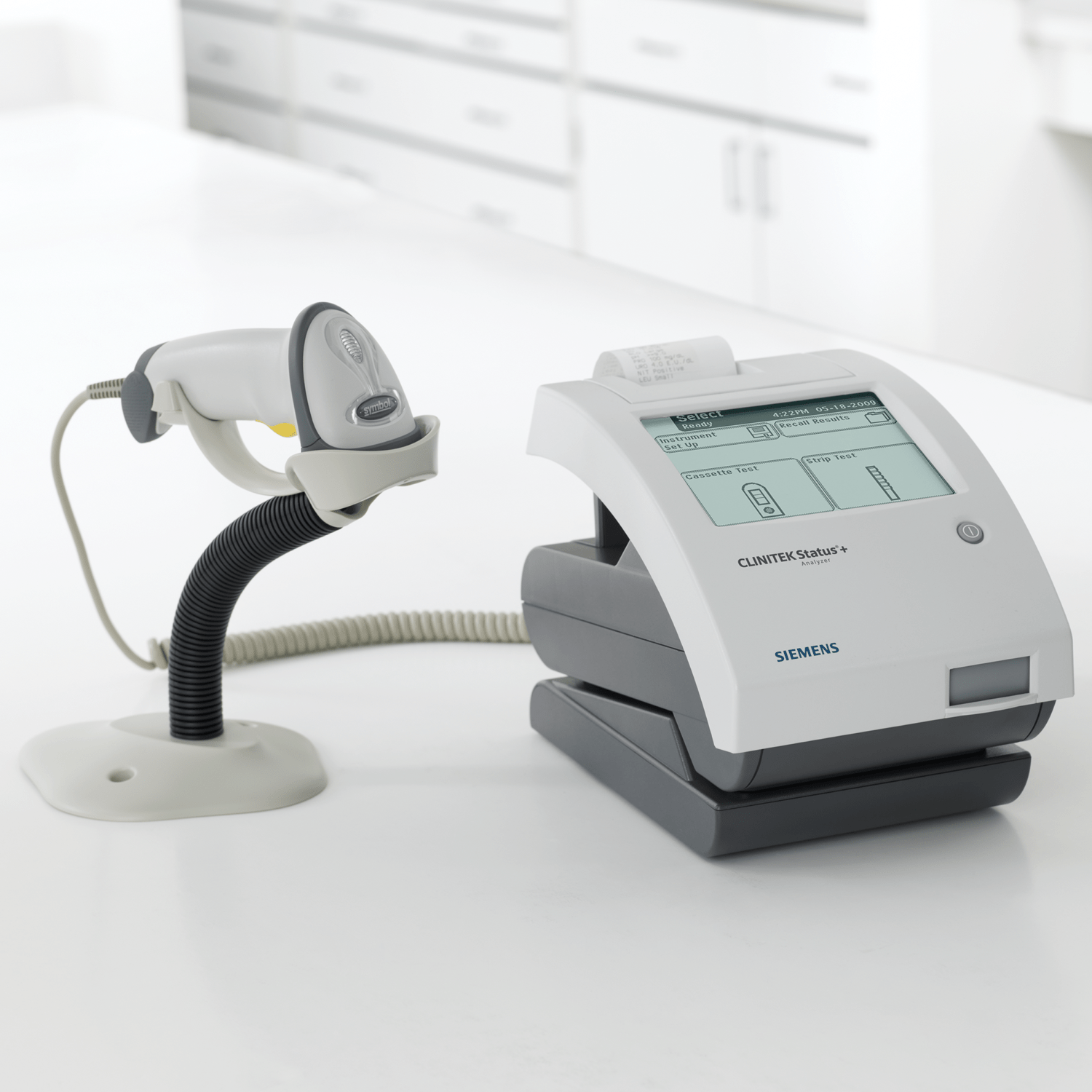

1500x1500_CLINITEKStratusConnect_Scanner-min

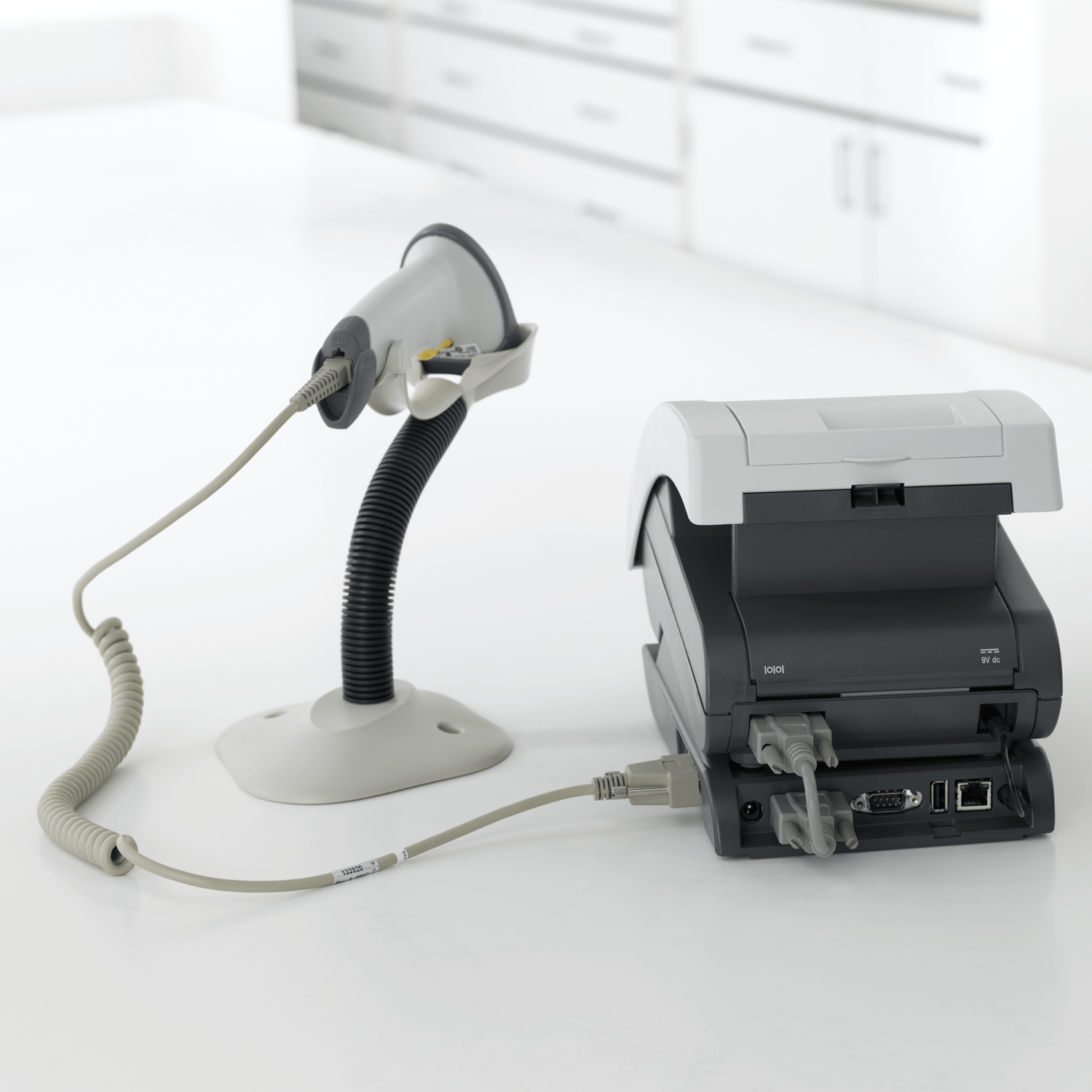

1500x1500_CLINITEKStratusConnect_back-min

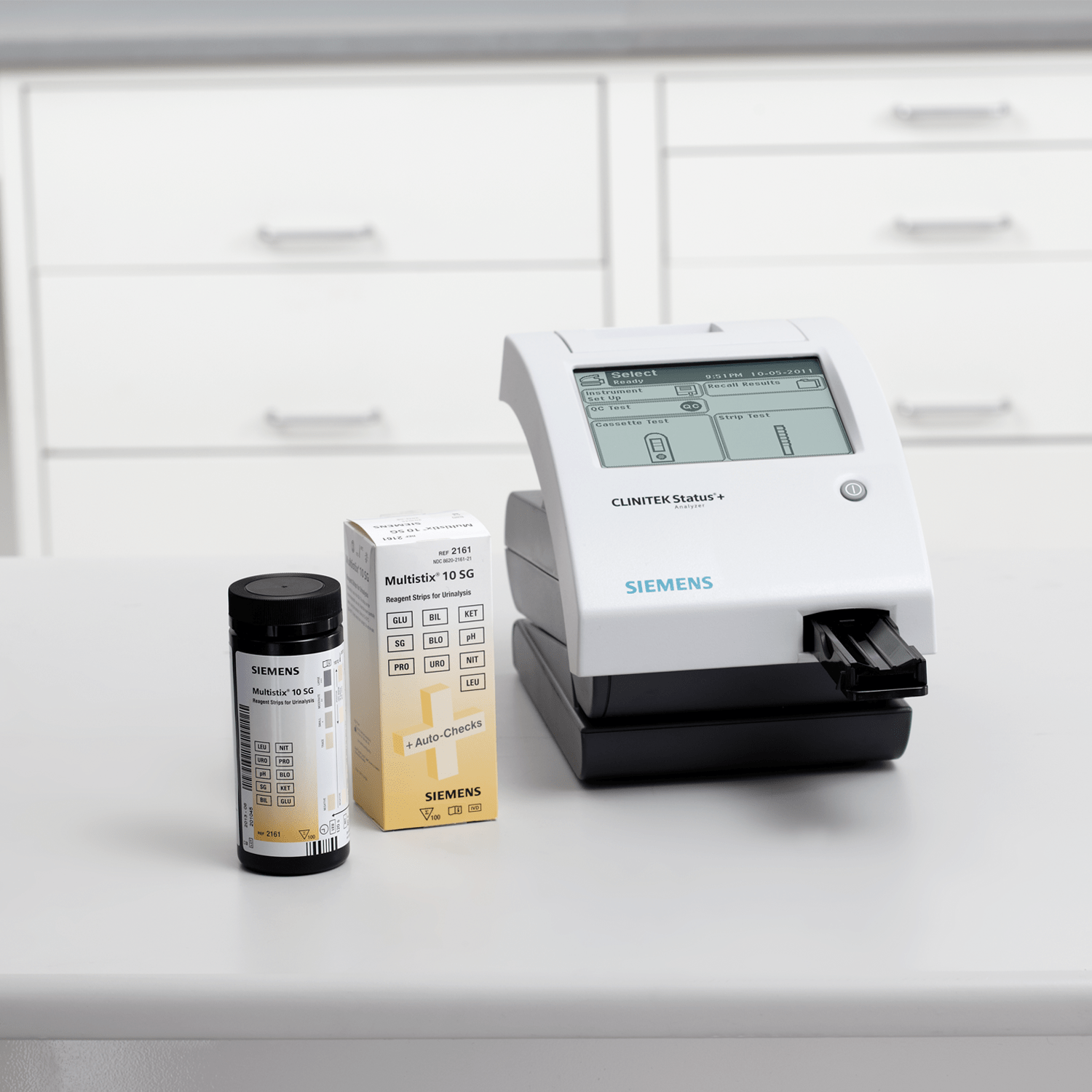

1500x1500_CLINITEKStratusConnect_MS10GS-min

Features & Benefits

Centralize control over your point-of-care urinalysis testing program with the CLINITEK Status Connect

Supports Flexible & Efficient Connectivity
Advanced Operational Control and Management
Enhanced Quality Control
Improved Data Integrity

Assays

The CLINITEK Status Connect System provides automated reading of the Multistix® family of urinalysis tests:

Leukocyte
Nitrite
Protein
Blood
Glucose
Ketone
Bilirubin
Urobilinogen
pH
Specific Gravity
Creatinine‡
Protein-to-Creatinine Ratio‡
Albumin
Albumin-to-Creatinine Ratio (ACR)
CLINITEST® hCG Pregnancy Test

Supports Flexible & Efficient Connectivity

Connect to your hospital’s LIS/HIS, EMR or point-of-care middleware solution
Connects by wireless, Ethernet or serial transmission
Supports HL7 and POCT1-A2 protocols
Interfaces with leading point-of-care data management solutions for centralized control and testing oversight – including Siemens Healthineers POCcelerator® Data Management System; Radiometer AQURE; TELCOR QML

Advanced Operational Control and Management

Provides customized operator access level
Supports operator ID entry and lockout
Prevents unauthorized use, based on customizable settings

Enhanced Quality Control

Optional barcode reader eliminates manual steps and reduces transcription errors
Maintain up-to-date operator certification records and restrict operator access as needed
Define specific QC protocols for operators across multiple sites
QC lockout if protocol is not followed or QC test fails
QC documentation and report downloads are available on demand
Store up to 200 QC test records

Improved Data Integrity

Auto-Checks:

Checks each strip for humidity to prevent reporting of falsely elevated results
Detects interferences in test samples and provides printed notation for improved results interpretation
Identifies Siemens strip type to save time

*Only available when using Siemens Healthineers test strips with IR or color bands
§Point of Care Diagnostic Testing Worldwide Markets. Trimark Publications. June 12, 2009
‡ Not available in all markets. Product availability may vary by country.

Atellica, Auto-Checks, CLINITEK Advantus, CLINITEK Status, DCA Vantage, epoc, Multistix, POCcelerator, RAPIDComm, RAPIDLab, RAPIDPoint, STIX, and all associated marks are trademarks – owned by or licensed to Siemens Healthcare Diagnostics Inc., or its affiliates. All other trademarks and brands are the property of their respective owners.
