Custo Guard Holter

Holter ECG recorder combining the benefits of both long-standing experience and continuous development

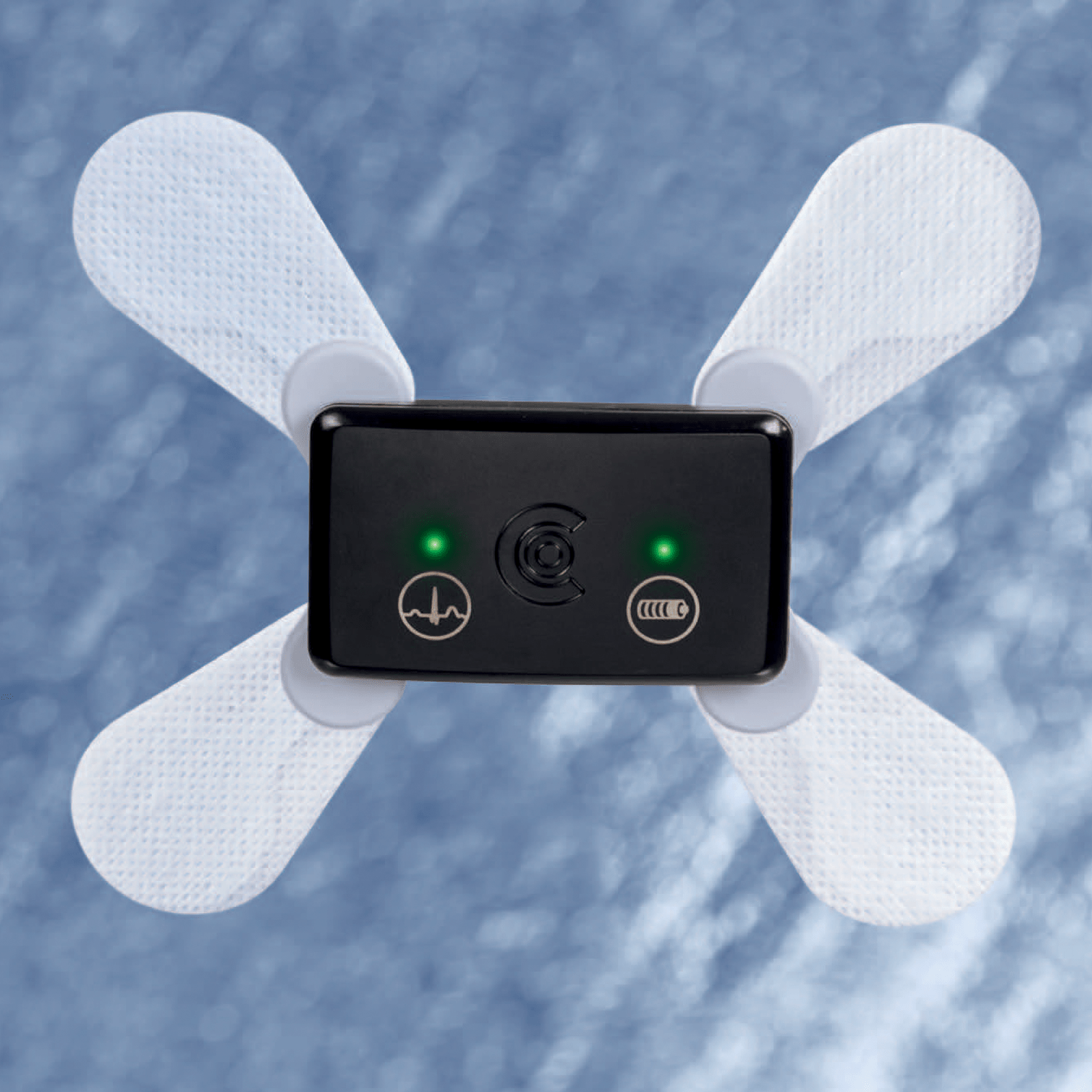

custo guard holter is the new Holter ECG recorder that combines the benefits of both long-standing experience and continuous development. It excels in high patient comfort, is compact and lightweight, and comes without any disturbing cables or belts. With three channels, motion and pacemaker detection as well as an almost unlimited recording time of several months, the custo guard holter is the perfect solution for an excellent long-term ECG.

Intelligent interface (guard holter viewer) in custo diagnostic

Display for recording stand-by mode and particular device states
Various configurations and recording modes are possible

Specifications

Number of ECG channels: 3
Sampling frequency: 533 Hz
Resolution: 18 Bit
ECG amplifier: 3 dB bandwidth 0 Hz … 105 Hz
ECG measurement range: +/-685.7 mV
Minimum detection threshold: 5.51 μV
Radio frequency band: ISM 2.4 GHz
Radio transmission power: 10 mW
PC connection: via custo guard base charging and communication unit (USB) and Bluetooth
Power supply: Lithium polymer battery
Battery runtime: Up to 120 h
Battery: charge time Approx. 2 hours, max. charge current 80 mA
Status display: LED light indicators for ECG quality and charge status
Dimensions: Approx. 70 x 42 x 12 mm (L x W x H)
Weight: Approx. 30 g
Ingress protection level: IP 65
Classification: Device with internal power supply, Class IIa, Type BF
Based on the standards:
DIN EN ISO 13485, DIN EN ISO 14971, DIN EN 1041,
DIN EN ISO 15223-1, DIN-EN 60601-1, DIN EN 60601-1-2,
DIN IEC 60601-1-6, DIN EN 62304, DIN EN 62366-1,
DIN EN ISO 10993-1, DIN EN ISO 10993-5, DIN EN ISO 10993-10,
DIN EN 60601-2-47, DIN EN 60601-1-11, EN 300 328

Accessories

Adhesive electrodes custo wing
Adhesive electrodes custo sensive
Electrode belt custo belt 3
custo belt extender (extension for electrode belt)
ECG cable guard 3
ECG cable guard 4
Disposable bags custo clean WA3 and CA3

[product_links show3=" true"]

Custo Guard Holter Highlights

3 channels with two independent derivations
Completely wireless and perfect for hygienic use
Pacemaker detection
Position and motion detection for context information
Control of electrode application by monitoring on PC
Bluetooth Low Energy for mobile applications
Running time up to 120 hours with only one battery

ECG solutions on-site – Resting and stress systems

Paperless working means more than doing without a printer. Due to the intelligent combination of smart ECG modules and modern IT components you create flexible, adaptable and low-maintenance ECG solutions for all requirements. From the fully-fledged ECG system with suction unit and rechargeable battery supply to the slim ECG with touch control. The equipment of an ECG system is always individual. Here, we present a number of reasonable combinations. Please contact your specialist dealer for details and individual solutions.
