Valiant 2 rehab

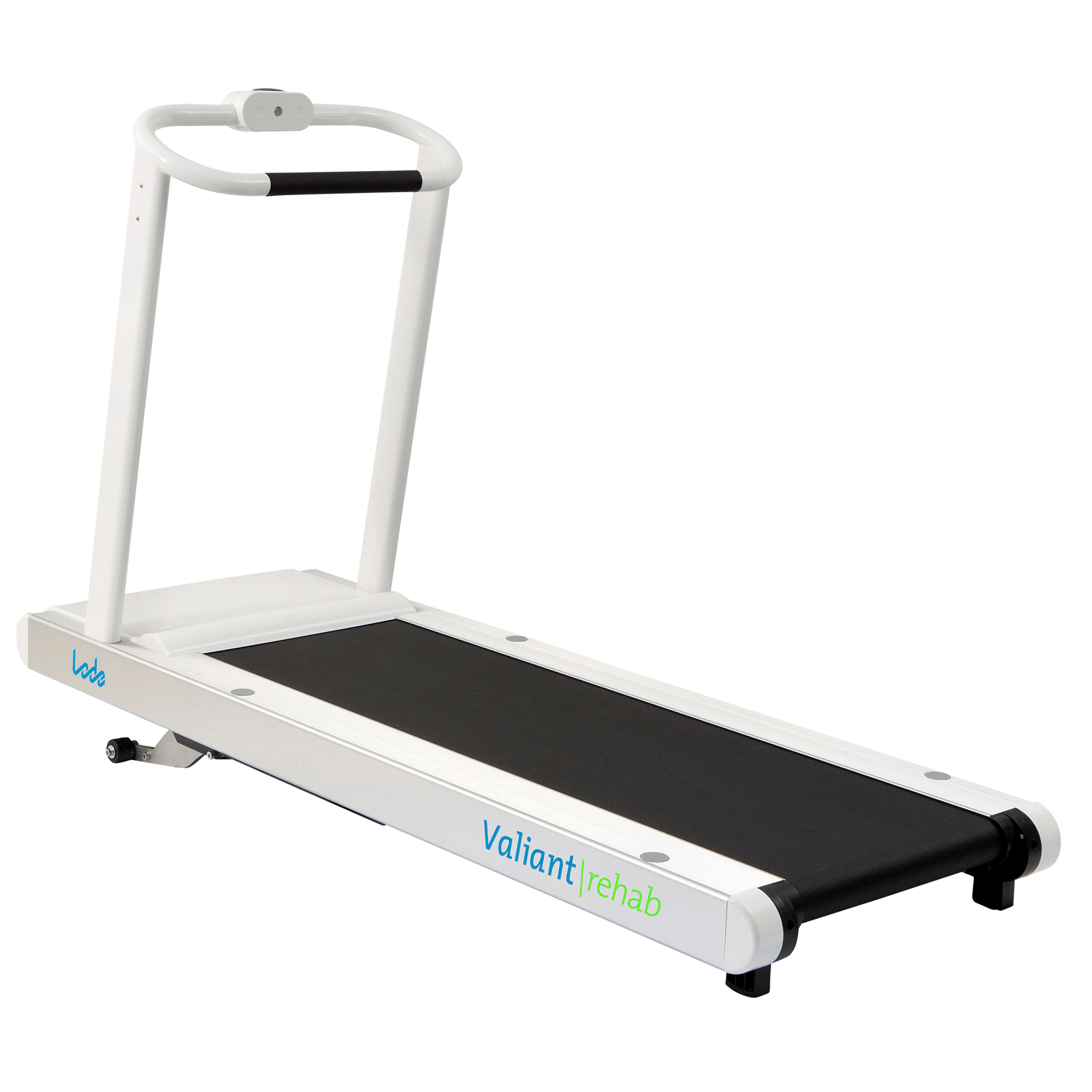

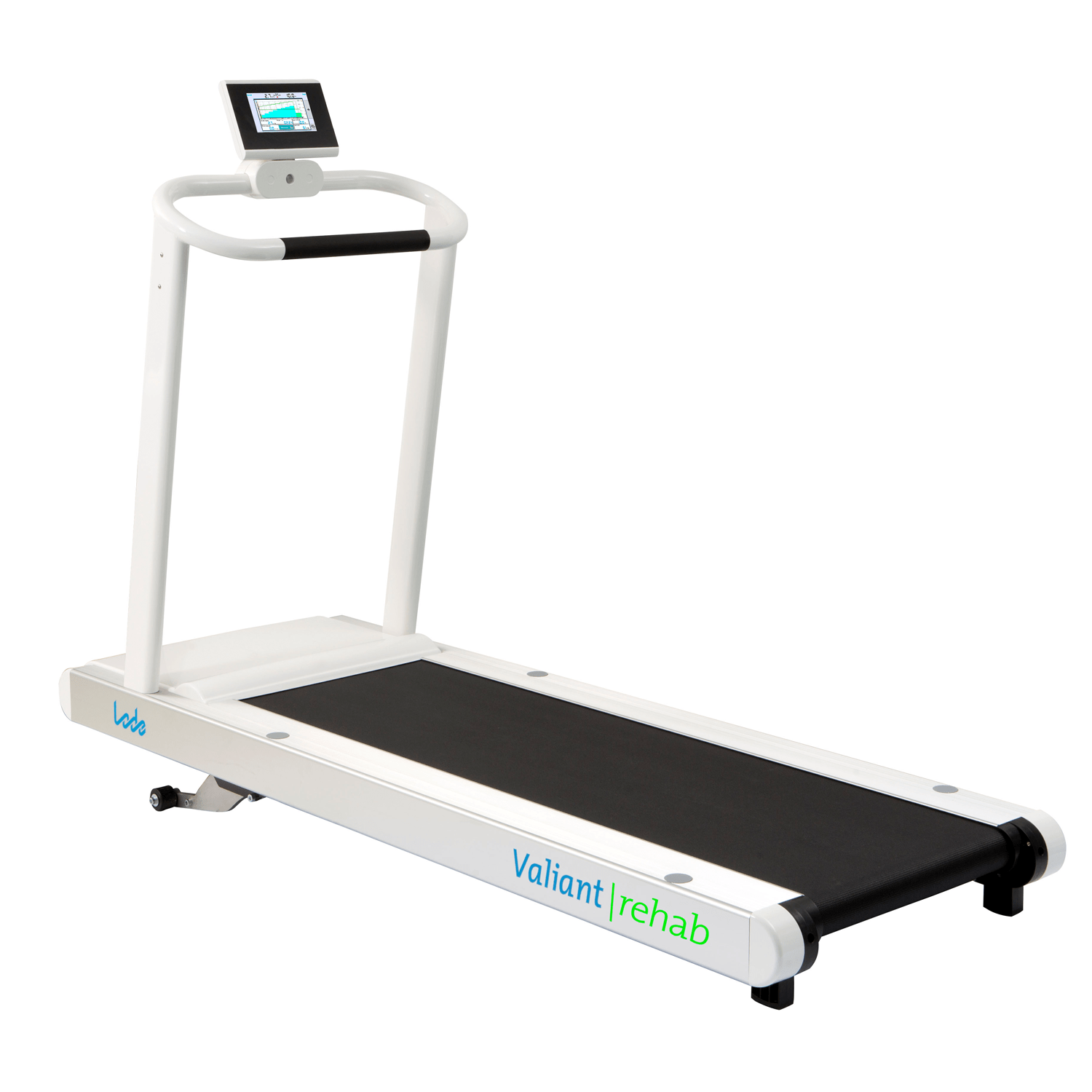

Valiant 2 rehab – Robust and reliable treadmill for rehabilitation

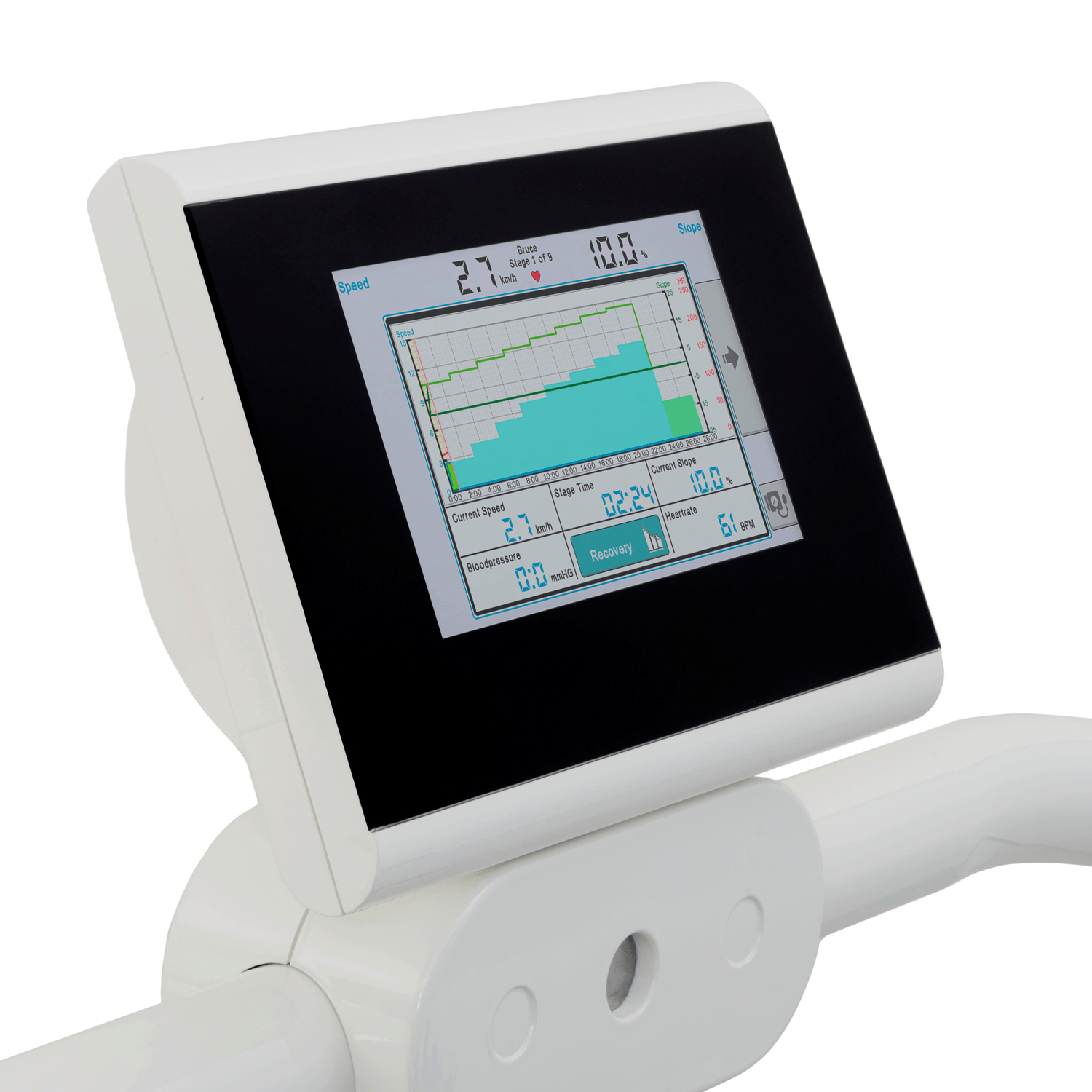

Modern designed treadmill specifically designed for rehabilitation. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of rehabilitation. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 rehab offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,1 – 12 km/h (0.06 – 7.5 mph). The included network module provides control within a Lode software network (LEM, LRM or LCRM). Thanks to the unique low design of the cover plate it is possible to place a mirror or camera in front of the treadmill which makes it easier to monitor the gait of the test subject. The Valiant 2 rehab has a standard running surface of 50 x 150 cm and 0-25% elevation. The treadmill is equipped with a 7″ control unit with Touchscreen for manual control and a bottle holder.

A USB A-B cable only for service purposes will be standard delivered with the product.
To connect LEM, LRM or LCRM you need a special interface cable that can be ordered.

Specifications

Speed: 0.1 – 12 km
Speed adjustment steps: 0.1 km
Positive elevation: 25 %
Elevation adjustment steps: 0.5 %
Optional negative elevation: -10 %
Speed accuracy: 5 %
Accuracy inclination: 0,5 %
Maximum user weight: 225 kg
Screen resolution: 800 x 400 pixels
Walking surface length: 150 cm
Walking surface width: 50 cm
Step up height: 17 cm
Size: 213 x 76 x 132 cm (LxWxH – excl. control unit)
Size: 213 x 76 x 150 cm (LxWxH – incl. 7″ control unit)
Product weight: 149 kg
Power cord length: 250 cm
Maximum rated power input: 2500 VA power input
Maximum motor power: 1.8 kWPower cord IEC 60320 C19 with CEE 7/7 plug
115 V AC 50/60 Hz (2 phases)
230 V AC 50/60 Hz

[product_links show3=" true"]

Lode treadmills Highlights

Extremely accurate – The treadmill is extremely accurate in its speed and angle settings
Smooth acceleration – All treadmills have a smooth acceleration from 0 km/h to the start speed.
Various handrails are optional available, making the treadmill suitable for your specific stress test setting.
Patient friendly treadmill, offers ultimate comfort for the patient:
– low step-up height
– faultless operation
– smooth acceleration
– reliable and reproducible test results
– low noise

Interconnectivity between Lode products

Connecting Lode products has never been easier! Lode rehab and sports products have a standard Network card: – To be able to connect the first product to the PC with L(C)RM a Lode proprietary network to PC cable is needed (#930930). This cable is standard included with Lode Rehab Software. – From the second product onward products can be connected to the previous one, creating a bus network configuration; – The last product always needs a termination plug to avoid interference and loss of data. Therefore all products with such a network card come with a termination plug. Benefits – Lossless data connection – High bandwidth – No interference of COM ports – Daisy chain connection – Full access of all data in the product to LCRM
