Rigel Multi-Flo

Infusion pump analyzer that can double your test capacity

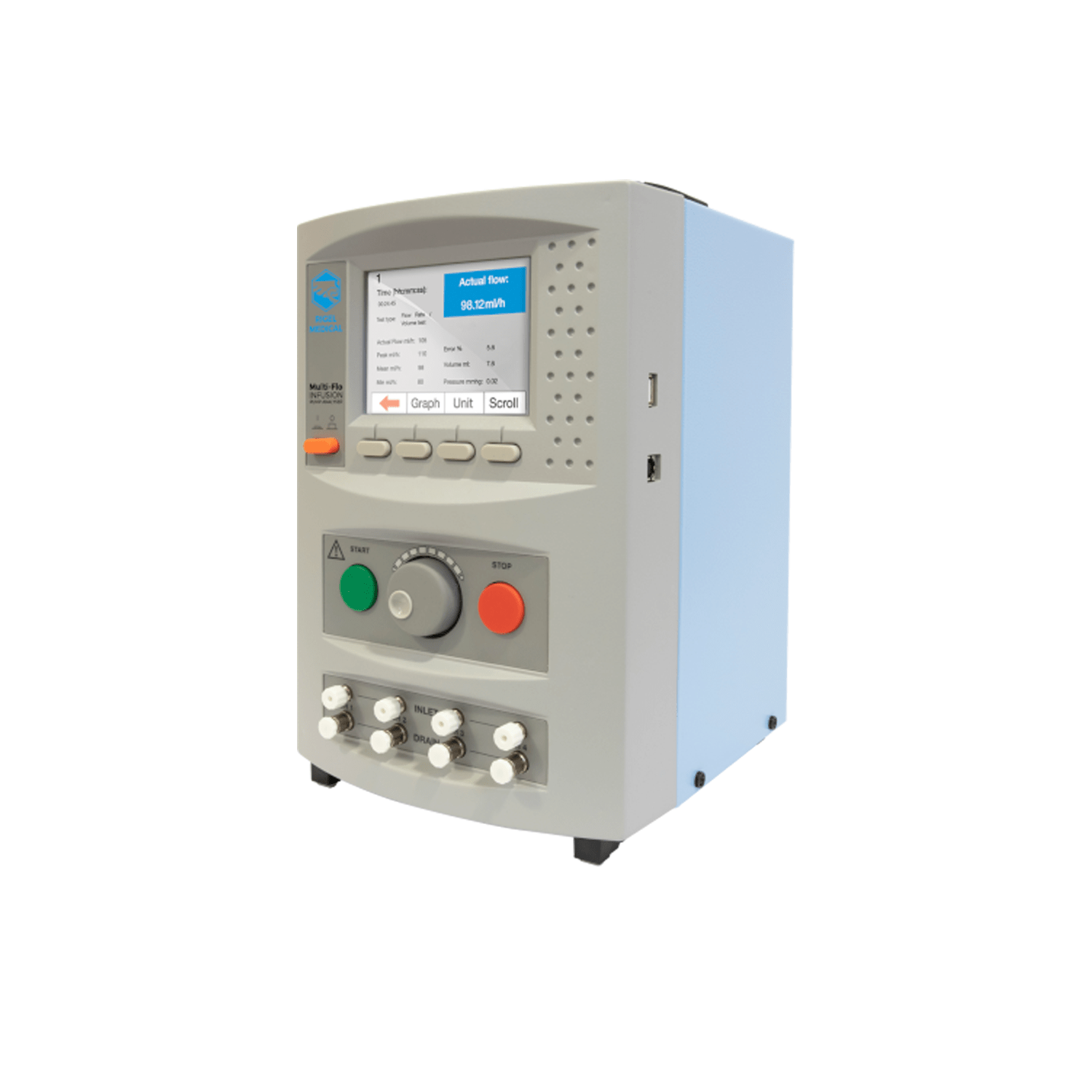

Rigel Multi-Flo infusion pump analyzer is a portable instrument to accurately and swiftly verify the performance of all infusion devices.
The Rigel Multi-Flo infusion pump analyser offers ease of use, high accuracy readings and productivity improvements right from the start.

IEC 60601-2-24 compliant
1, 2 and 4 individual channel configurations
Instant flow and pressure
Compatible with all infusion devices

Specifications

Storage: 15 x 24h of testing at 1 second sampling rate
Dimensions: 300 x 204 x 220mm/11.8 x 8 x 8.6” (w x d x h)
Weight: 5kg/11lbs (1 channel)/6kg/13lbs (2 channel)/8kg/18lbs (4 channel)
Mains Supply: 90-264VAC, 50/60 Hz, 60W
Mains Cable: 1ml to 30ml/h
Storage Environment: 0–50°C / 32–122°F
Operating Conditions: 15–40°C / 59–104°F
Environmental Protection: IP40

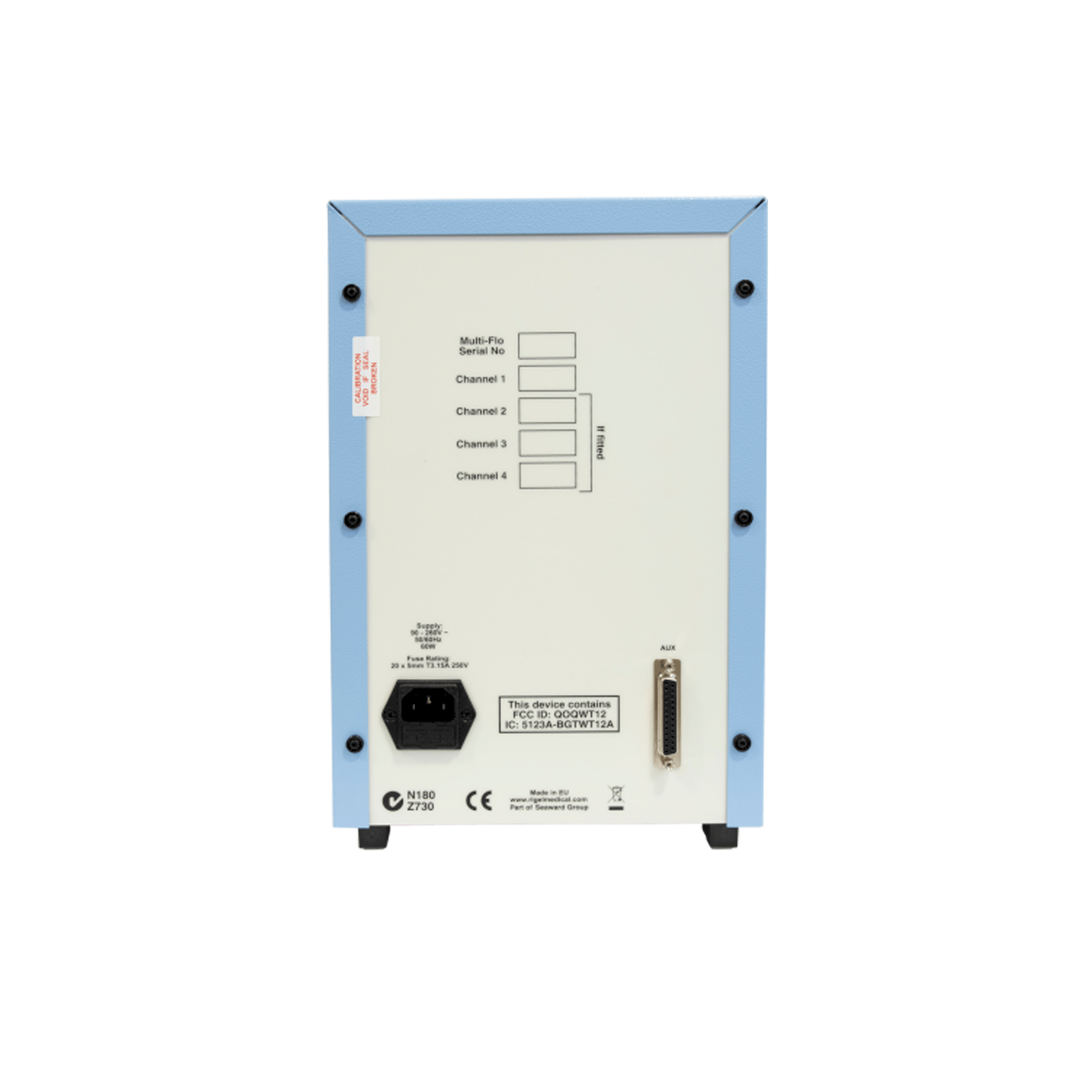

PC Communication: USB B
Keyboard Communication: USB A
Display: LCD colour graphic display ¼” VGA

[product_links show3=" true"]

The Multi-Flo features

Remote Control Interface Control the Multi-Flo features using our Med-eBase software on a PC.
Multi-Channel Configurations Test up to four infusion devices simultaneously.
Instantaneous Flow Onscreen graph for flow measurements, even at low flow rates.
Data Storage Fully traceable results and automatic data capture.

Service

Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
