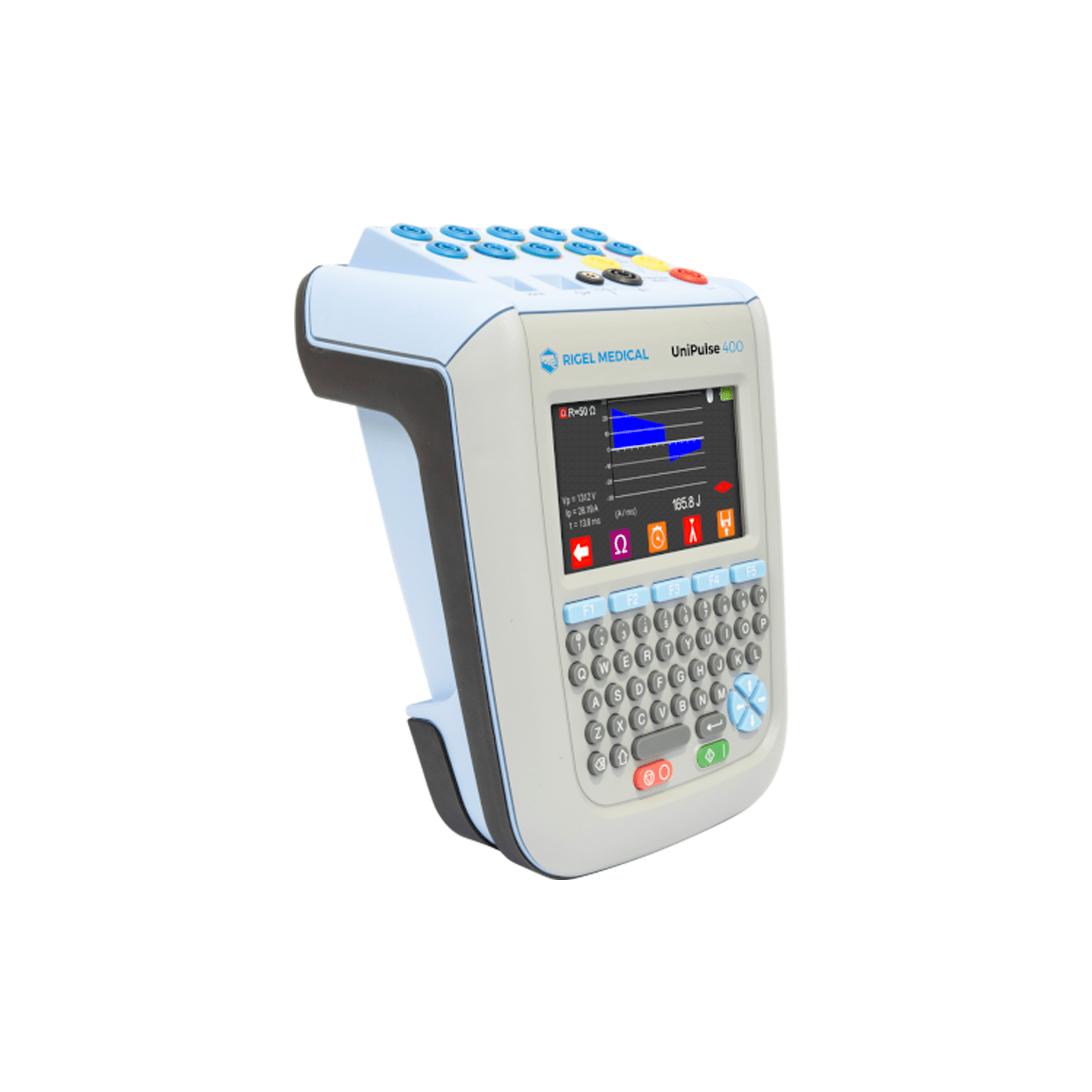

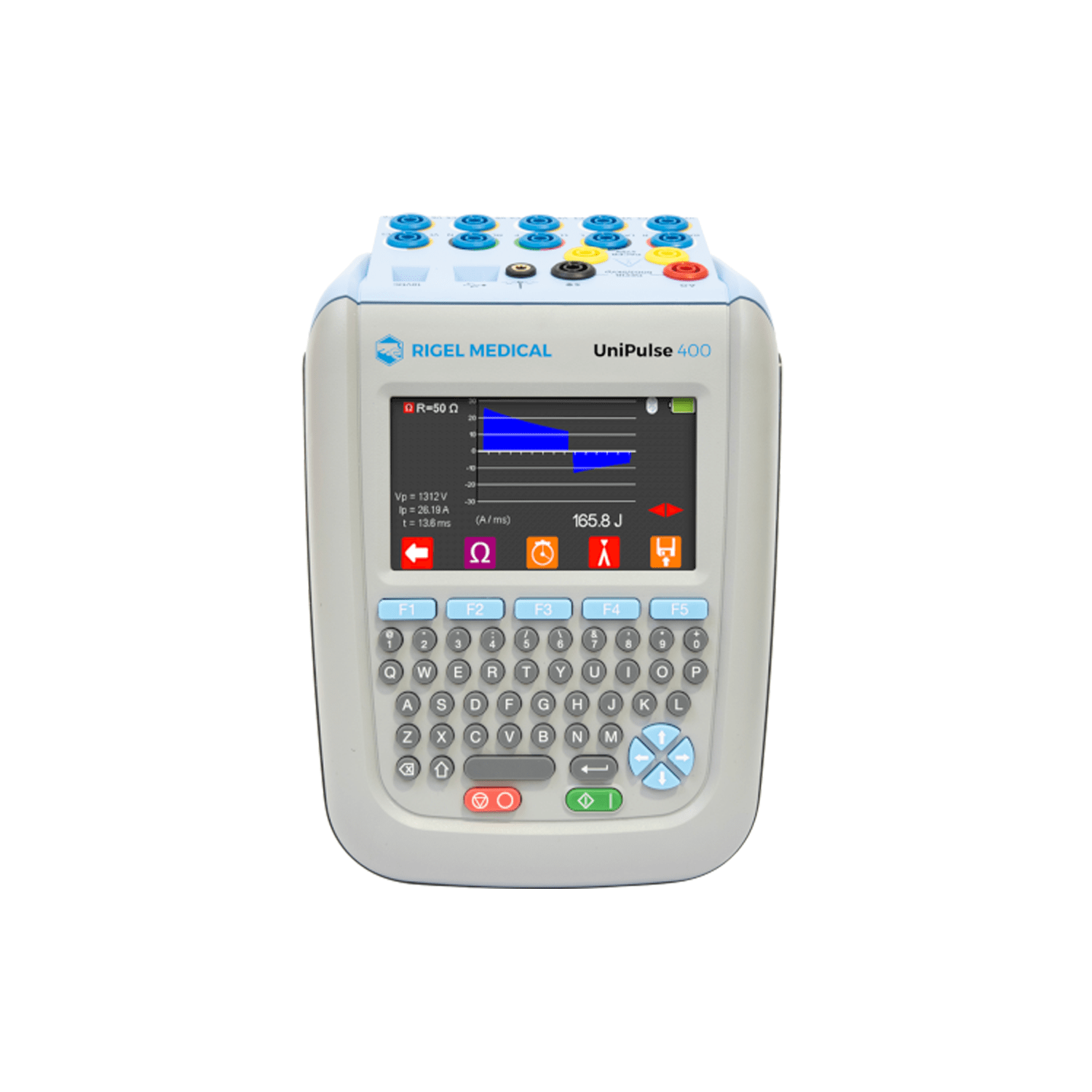

Rigel UniPulse 400

An easy-to-use defibrillator analyzer with pacer
The UniPulse 400 is designed to comprehensively test all defibrillators accurately and efficiently. The large vibrant colour screen will display both test results and waveforms in amazing detail. The dedicated fast keys and simple to use operating system enables test engineers to select the relevant test function in seconds.
This comprehensive defibrillator analyzer is capable of analyzing all monophasic, biphasic, standard and pulsating waveforms. This unrivaled functionality and our new comprehensive pacer function makes the UniPulse 400 the ultimate defibrillator analyzer on the market.

Compatible with monophasic, biphasic and pulsed waveforms
ECG simulation with high level output
Reliable and non-inductive defibrillator test load of 50Ω

Specifications

Dimensions: 220mm x 150mm x 90mm (L x W x H)
Weight: 1.5kg
Operation: 9.6V/2400mAh Nickel Metal Hydride battery pack
Battery charge time: 2.5 hours
Battery capacity (fully charged): 12 hours
Main’s supply: 110/230V AC; 48 to 66Hz, 35VA power supply
Storage environment: -15°C to +60°C
Operating conditions: 0°C to +40°C
Environmental protection: IP 40
Communication USB: Display LCD colour graphic display ¼” VGA
Memory: 100 test results including graphs
Impact rating: 5J

[product_links show3=" true"]

UniPulse 400 features

The complete defibrillator analyzer solution – including pacer functionality.
Clear and vibrant LCD colour display with simple navigation – including dedicated fast keys. Less button pushing, more testing.
Rugged, compact and easy to hold – take it anywhere, anytime… easily with battery operation.
Compatible with all defibrillators – accurately measure and display waveforms from monophasic to biphasic, all in a tester that fits in your hand.
Rechargeable battery allowing operation without the need for mains power
