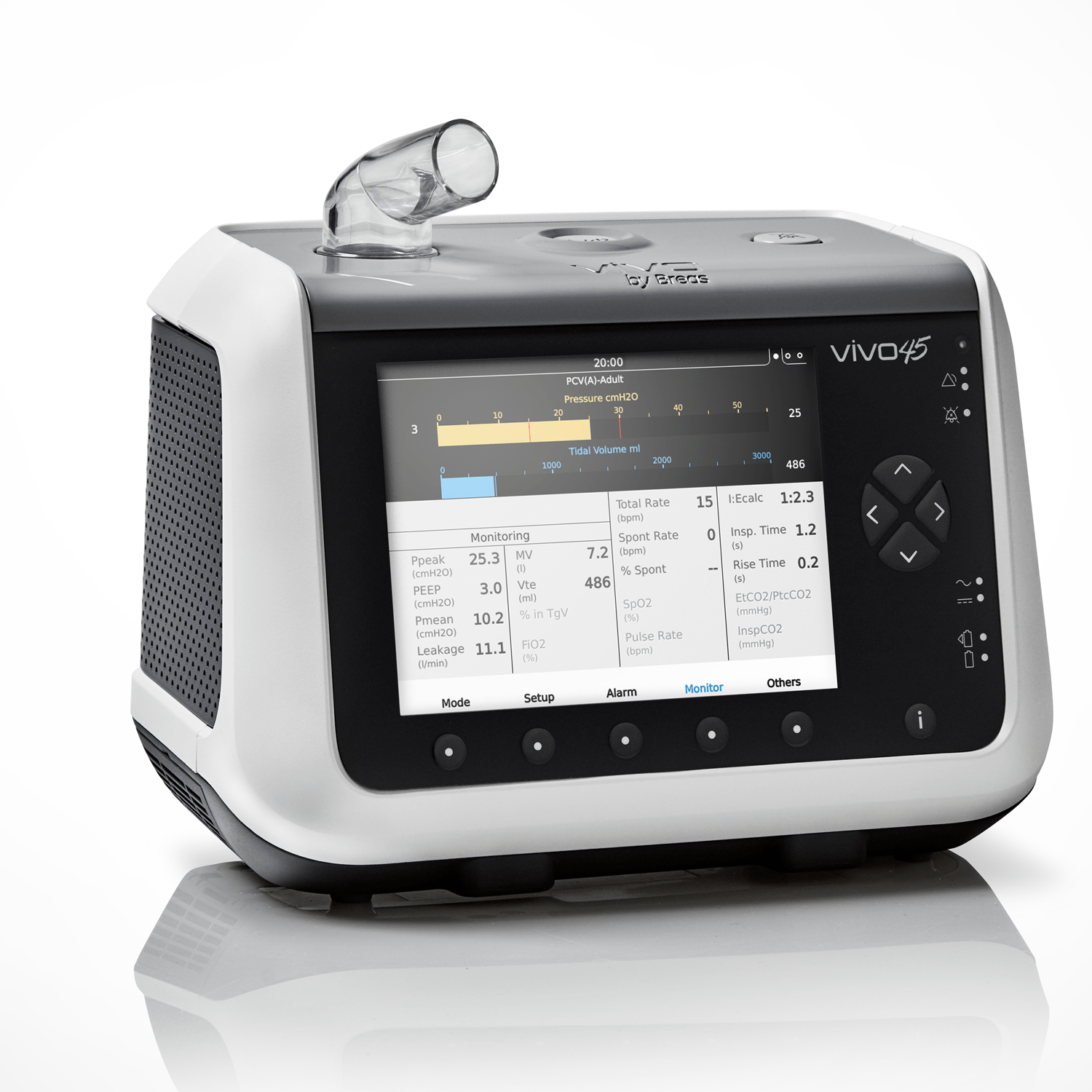

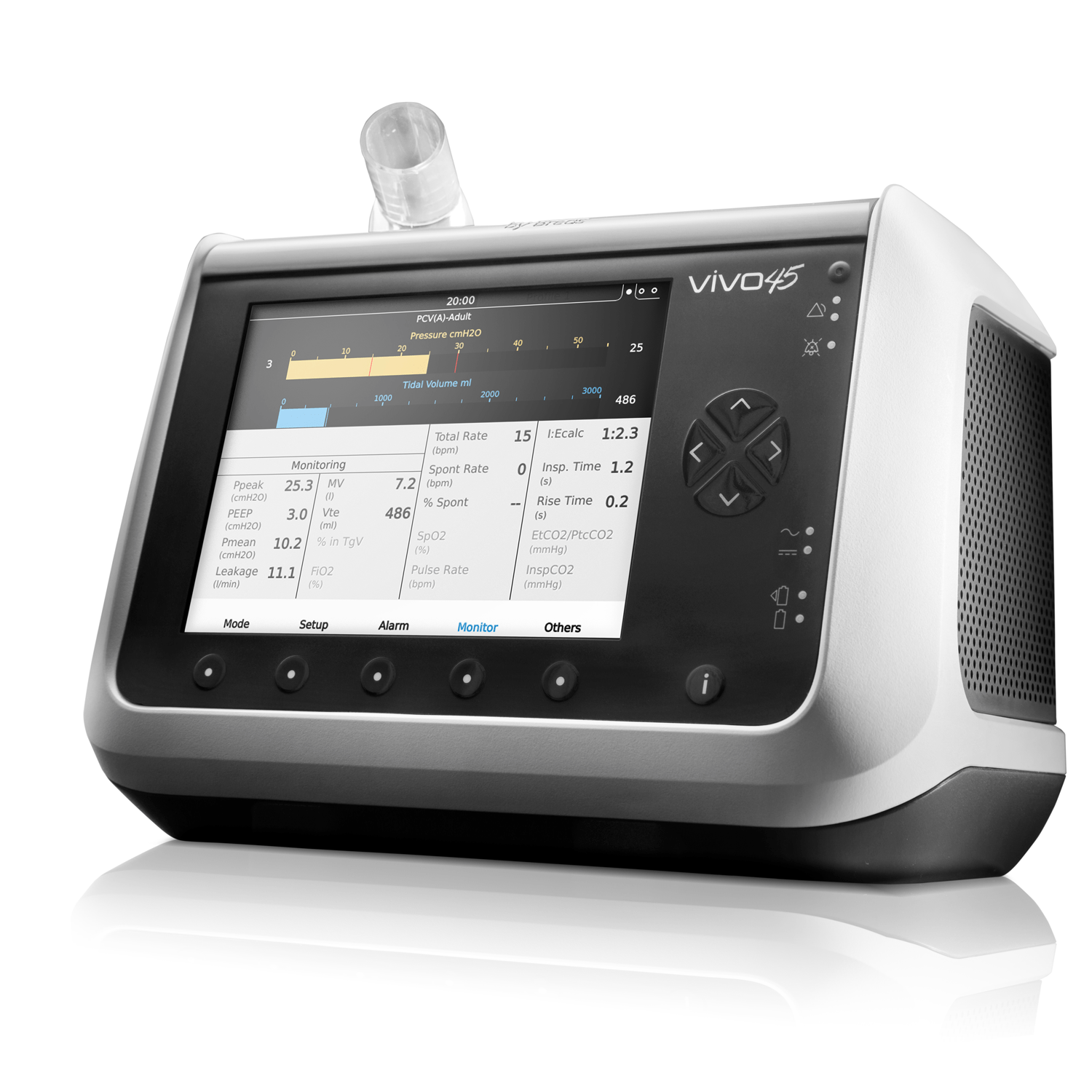

Vivo 45

Designed For EveryDay Life – Now with Auto-EPAP and MPV

To meet the needs connected to a wide range of respiratory conditions a ventilator must offer outstanding clinical versatility and performance. But equally important, it must be designed around the patient’s life, activities and home environment. Vivo 45 is a ventilator designed to maximize independence and mobility.

Designed for everyday life

Small, neat and user friendly
Integrated humidifier and heated wire connection
2.5 h internal + 6.5 h click-in battery for use on the move

Specifications

Ventilation Modes: PSV, PSV-AE, PSV(TgV), PSV(TgV)-AE, PCV, PCV-AE, PCV(TgV), PCV(TgV)-AE, PCV(A), PCV(A)-AE, PCV(A+TgV), PCV(A+TgV)-AE, CPAP, PCV-MPV
Patient Modes: Adult, Paediatric
Device Modes: Home, Clinical
Profiles: 3 settable profiles
Inspiratory Pressure: 4 – 40 cmH2O
PEEP: 2 – 20 cm H2O
Breath Rate/Back-up Rate: Adults: 4 – 40 bpm, Paediatrics: 6 – 60 bpm
Inspiratory Time: 0.3 – 5 s
Backup Inspiratory Time: 0.3 – 5 s (PSV)
Rise Time: 1 – 9 (PSV & PCV)
Inspiratory Trigger: 1 – 9 (PSV & PCV), Off (PCV)
Expiratory Trigger: 1 – 9 (PSV)
Minimum Inspiratory Time: Off, 0.3 to 3 s
Maximum Inspiratory Time: 0.3 – 5 s, Off
Target Volume: Adults: 300 – 2000 ml, Paediatrics: 100 – 500 ml
Auto-EPAP: On/Off, Min/Max EPAP: 2 – 20 cmH2O, PS: 2 – 40 cmH2O -Max EPAP, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 120 – 720 sec/Off, Min PS/Max PS: 2 – 40 cmH2O -Max EPAP, Pressure Limit: Max EPAP +2 cmH2O – 40 cmH2O
Displayed data: Ppeak, PEEP, Pmean, Leakage, MV, Vt, FiO2, % in TgV, Total Rate, Spont Rate, % spont, SpO2, Pulse, Rate, I:E, Inspiratory time, Rise time, EtCO2, PtcCO2, AHI
Waveforms: Pressure, flow, volume, EtCO2, Effort Belts
Trends over 1, 6, 24 and 48 h on device screen: Ppeak, PEEP, Total rate, Spont rate, Vt, Leakage, SpO2, EtCO2
Built-in connectivity: Ethernet, USB
Compatible Software: Prepared for Breas Cloud Service
Plug-and-Play accessories: SpO2, PtcCO2, EtCO2, Effort Belts, Nurse Call, Remote Alarm, Remote Start/Stop
Humidification: Integrable water chamber
Circuits: Disposable leakage circuits with/without heated wires, disposable MPV circuits

[product_links show3=" true"]

Adaptable to clinical needs

Options for a wide range of patients and conditions
Integrated polygraphy tracing: SpO2, FiO2, CO2, respiratory effort belts
Easy to learn, easy to use

Remote monitoring – Ready for Breas Connected Care Solutions:

On-Demand Hi-Resolution breath-by-breath data
Seamless communication between colleagues and caregiving team
Tailored alerts based on patient needs
Review summary and detailed data with PC Software

Service

Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
